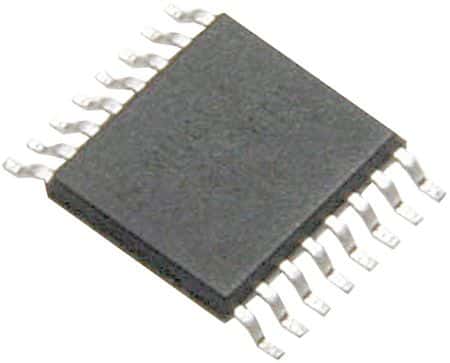

PCI-Express Clock Generator IC featuring a PLL core and two outputs. Operates with a 3.3V supply voltage, accepting crystal input and providing a 100MHz frequency. This integrated circuit offers both serial and parallel interfaces, housed in a TSSOP package with tin, matte contact plating. Designed for a wide temperature range of -40°C to 85°C, it boasts a low maximum supply current of 1mA and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9573ARUZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Frequency | 100MHz |
| Height | 1.05mm |
| Input | Crystal |
| Interface | Serial, Parallel |
| Lead Free | Contains Lead |
| Length | 5.1mm |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| PLL | Yes |
| Power Dissipation | 285mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PCI Express® (PCIe) |
| Width | 4.5mm |
| RoHS | Compliant |
