Dual 12-bit Analog-to-Digital Converter (ADC) with 250 MSPS sampling rate. Features differential inputs, LVDS interface, and 70.1dB Signal-to-Noise Ratio (SNR). Operates from a 1.8V supply with a maximum power dissipation of 770mW. Integral Nonlinearity (INL) is 0.8 LSB, and Differential Nonlinearity (DNL) is 0.5 LSB. Housed in a 9.1mm x 9.1mm x 0.95mm LFCSP EP package with tin, matte contact plating.
PackageLFCSP EP
Current252mA
PolarityBipolar
Power770mW
Quick Jump:
Technical Specifications
Analog Devices AD9613BCPZ-250 technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Differential Nonlinearity
0.5LSB
Height
0.95mm
Input Capacitance
2.5pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
0.8LSB
Interface
LVDS
Lead Free
Contains Lead
Length
9.1mm
Max Input Voltage
2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
770mW
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of Elements
2
Number of Inputs
2
Operating Supply Voltage
1.8V
Package Quantity
260
Packaging
Tray
Polarity
Bipolar
Power Consumption
770mW
Power Dissipation
770mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
250000000S/s
Signal to Noise Ratio (SNR)
70.1dB
Supply Current
252mA
Supply Type
Single
Width
9.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9613BCPZ-250 Datasheet
Download the complete datasheet for Analog Devices AD9613BCPZ-250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

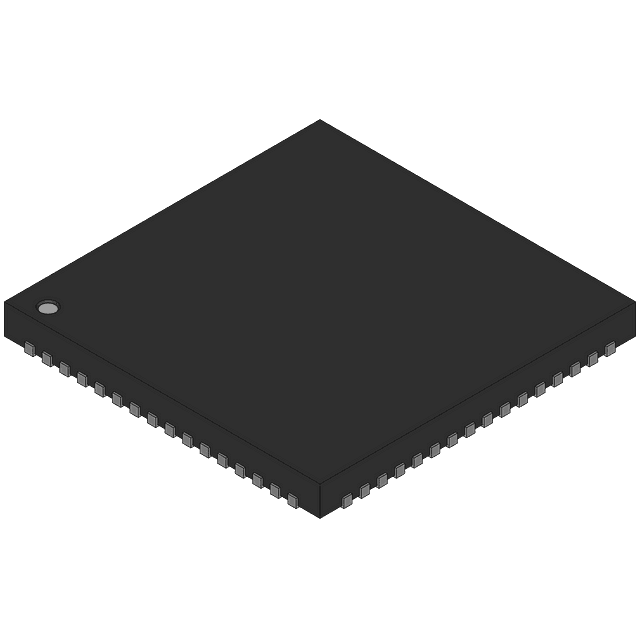

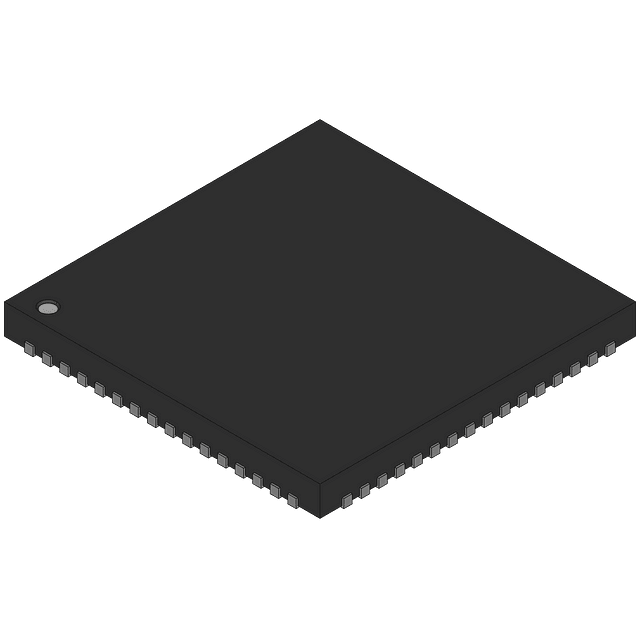

Product Images
