Dual, 8-bit digital-to-analog converter (DAC) offering a 125MS/s conversion rate. Features differential output and supports SPI, serial, and parallel interfaces. Operates with supply voltages from 1.8V to 3.3V, with a maximum power dissipation of 86mW. Integral nonlinearity is 0.025LSB, and it functions across an operating temperature range of -40°C to 85°C. Packaged in tape and reel with tin, matte contact plating.
Power86mW
Quick Jump:
Technical Specifications
Analog Devices AD9714BCPZRL7 technical specifications.
General
Contact Plating
Tin, Matte
Conversion Rate
125MS/s
Differential Output
Yes
Integral Nonlinearity (INL)
0.025LSB
Interface
SPI, Serial, Parallel
Lead Free
Contains Lead
Max Input Voltage
1.25V
Min Input Voltage
100mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
86mW
Max Supply Voltage
3.3V
Min Supply Voltage
1.8V
Number of Bits
8
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Output Polarity
Unipolar
Package Quantity
750
Packaging
Tape and Reel
Power Dissipation
86mW
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
125MS/s
Series
TxDAC®
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9714BCPZRL7 Datasheet
Download the complete datasheet for Analog Devices AD9714BCPZRL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

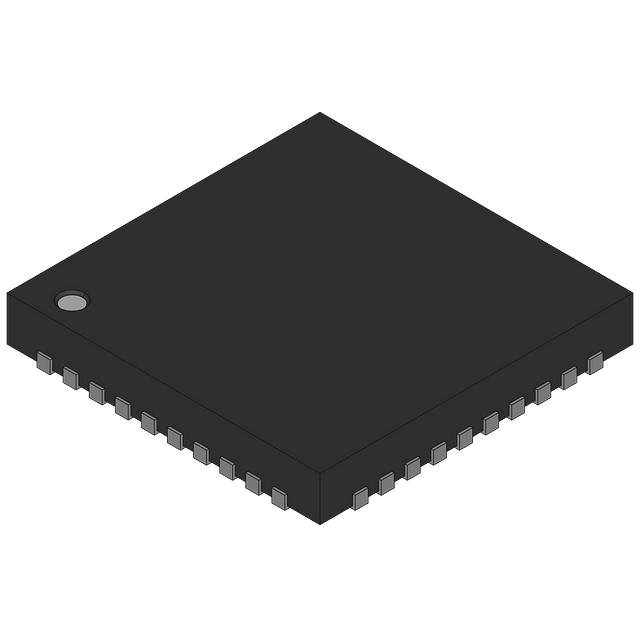

Product Images
