14-bit, 2.5 GSPS RF Digital-to-Analog Converter featuring a single channel with a unipolar output. This integrated circuit boasts a 2.5 GS/s conversion rate and a 14-bit resolution. It supports LVDS, Parallel, and Serial interfaces, with a differential output. Operating supply voltage is 3.3V, with a maximum power dissipation of 960mW. The component is housed in a BGA package with copper, tin, and silver contact plating, measuring 12.1mm in length and width, and 1mm in height.
PackageBGA
Power960mW
Quick Jump:
Technical Specifications
Analog Devices AD9739ABBCZ technical specifications.
General
Package/Case
BGA
Contact Plating
Copper, Tin, Silver
Conversion Rate
2.5GS/s
Differential Output
Yes
Height
1mm
Integral Nonlinearity (INL)
2.5LSB
Interface
LVDS, Parallel, Serial
Lead Free
Contains Lead
Length
12.1mm
Max Input Voltage
1.25V
Min Input Voltage
1.15V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
960mW
Max Supply Voltage
3.5V
Min Supply Voltage
3.1V
Number of Bits
14
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Number of DAC Channels
1
Operating Supply Voltage
3.3V
Output Polarity
Unipolar
Package Quantity
189
Packaging
Tray
Power Dissipation
960mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
2.5GS/s
Settling Time
13us
Width
12.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9739ABBCZ Datasheet
Download the complete datasheet for Analog Devices AD9739ABBCZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

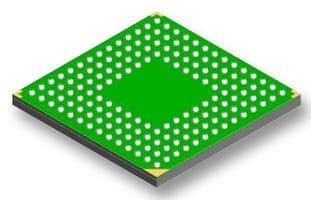

Product Images
