14-bit, 2.5 GSPS RF Digital-to-Analog Converter featuring a single channel and 14-bit resolution. This DAC offers a 2.5 GS/s conversion rate with differential outputs and supports LVDS, SPI, Serial, and Parallel interfaces. Operating from a 3.1V to 3.5V supply, it has a maximum power dissipation of 1.16W and an integral nonlinearity of 1.3 LSB. Packaged in BGA, this component operates across a -40°C to 85°C temperature range.
PackageBGA
Power1.16W
Quick Jump:
Technical Specifications
Analog Devices AD9739BBCZRL technical specifications.
General
| Package/Case | BGA |
| Conversion Rate | 2.5GS/s |
| Differential Output | Yes |
| Integral Nonlinearity (INL) | 1.3LSB |
| Interface | LVDS, SPI, Serial, Parallel |
| Lead Free | Contains Lead |
| Max Input Voltage | 1.2V |
| Min Input Voltage | 1.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 975mW |
| Max Supply Voltage | 3.5V |
| Min Supply Voltage | 3.1V |
| Number of Bits | 14 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.16W |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 2.5GS/s |
| Settling Time | 13us |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9739BBCZRL Datasheet
Download the complete datasheet for Analog Devices AD9739BBCZRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

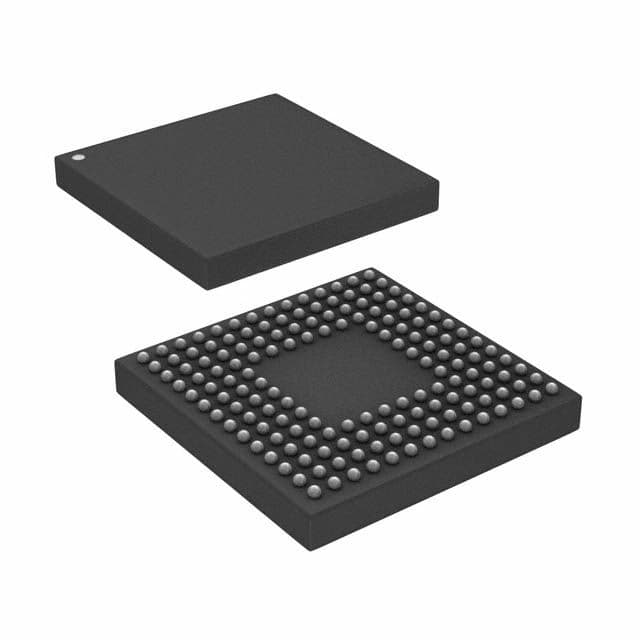

Product Images
