Dual 12-bit digital-to-analog converter (DAC) with a 250 MS/s conversion rate. Features differential output and a parallel interface. Offers 0.25 LSB integral nonlinearity (INL). Operates with a 3.3V supply voltage, consuming a maximum of 345mW power. Suitable for applications requiring high-speed, precise analog signal generation.
Power350mW
Quick Jump:
Technical Specifications
Analog Devices AD9745BCPZRL technical specifications.
General
Contact Plating
Tin, Matte
Conversion Rate
250MS/s
Differential Output
Yes
Integral Nonlinearity (INL)
0.25LSB
Interface
Parallel
Lead Free
Contains Lead
Max Input Voltage
1.3V
Min Input Voltage
1.15V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
345mW
Max Supply Voltage
3.47V
Min Supply Voltage
3.13V
Number of Bits
12
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Operating Supply Voltage
3.3V
Output Polarity
Unipolar
Package Quantity
2000
Packaging
Tape and Reel
Power Dissipation
350mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
250MS/s
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9745BCPZRL Datasheet
Download the complete datasheet for Analog Devices AD9745BCPZRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

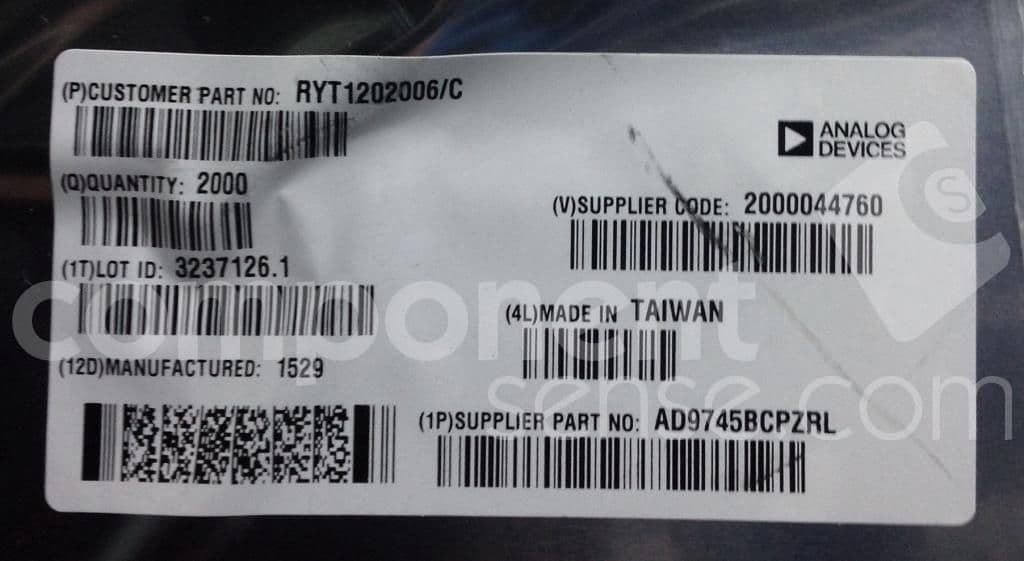

Product Images
