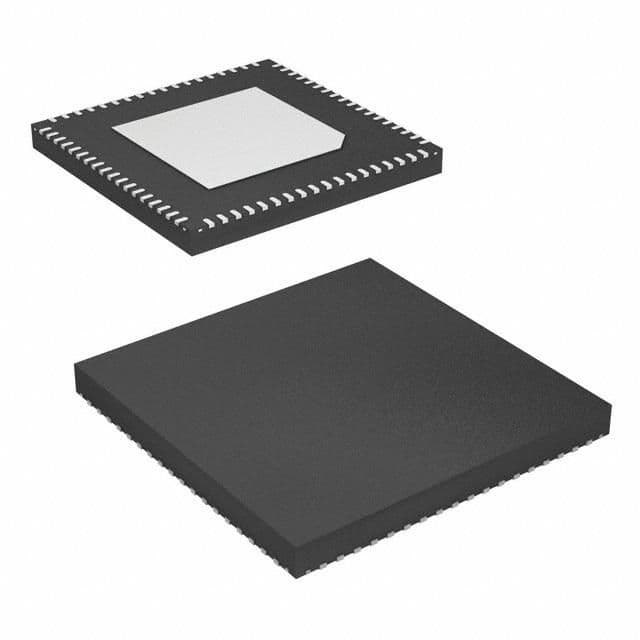

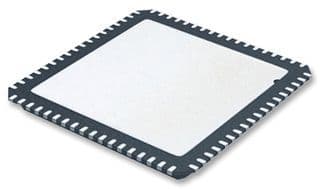

Dual 16-bit Digital-to-Analog Converter (DAC) with a 500 MS/s sampling rate and LVDS interface. Features 2 DAC channels, 16-bit resolution, and a 600 MS/s conversion rate. Operates with a 3.3V supply voltage, consuming 55mA supply current and dissipating up to 462.3mW. Integral nonlinearity is 4 LSB, with a maximum input voltage of 1.2V. Housed in an LFCSP EP package with tin, matte contact plating, operating from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9783BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 600MS/s |
| Height | 0.83mm |
| Integral Nonlinearity (INL) | 4LSB |
| Interface | LVDS, Parallel, Serial, SPI |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Input Voltage | 1.2V |
| Min Input Voltage | 1.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 315mW |
| Max Supply Voltage | 3.47V |
| Min Supply Voltage | 3.13V |
| Number of Bits | 16 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of DAC Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Output Polarity | Unipolar |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 462.3mW |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 500MS/s |
| Series | AD9783 |
| Supply Current | 55mA |
| Supply Type | Analog, Digital |
| Width | 10mm |
| RoHS | Compliant |
