Dual 14-bit, 800 MSPS DAC with a low-power 32-bit complex NCO. Features include a 14-bit resolution, 800 MS/s conversion rate, and differential output. Operates with a 3.3V supply voltage and offers parallel and serial interfaces. Packaged in QFP with tin, matte contact plating, this component is RoHS compliant and suitable for a wide temperature range of -40°C to 85°C.
PackageQFP
Power450mW
Quick Jump:
Technical Specifications
Analog Devices AD9787BSVZRL technical specifications.
General
Package/Case
QFP
Contact Plating
Tin, Matte
Conversion Rate
800MS/s
Differential Output
Yes
Integral Nonlinearity (INL)
1LSB
Interface
Parallel, Serial
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
450mW
Max Supply Voltage
3.47V
Min Supply Voltage
3.13V
Number of Bits
14
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Operating Supply Voltage
3.3V
Output Polarity
Unipolar
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
450mW
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
800MS/s
Series
TxDAC®
Settling Time
20us
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9787BSVZRL Datasheet
Download the complete datasheet for Analog Devices AD9787BSVZRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

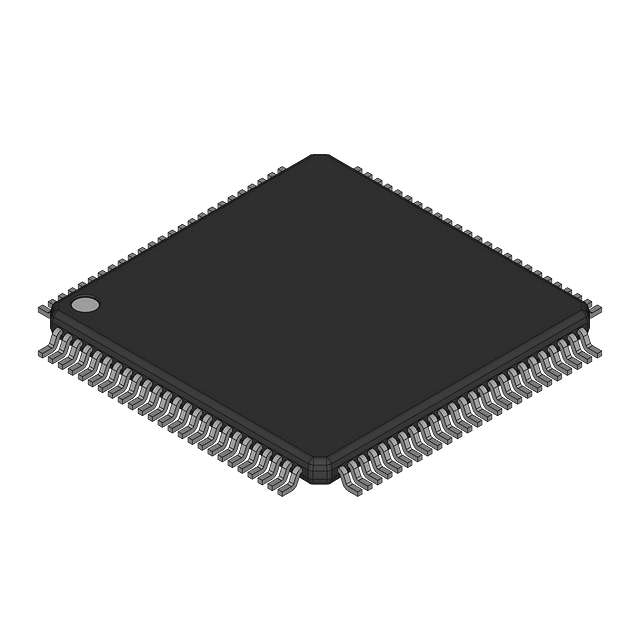

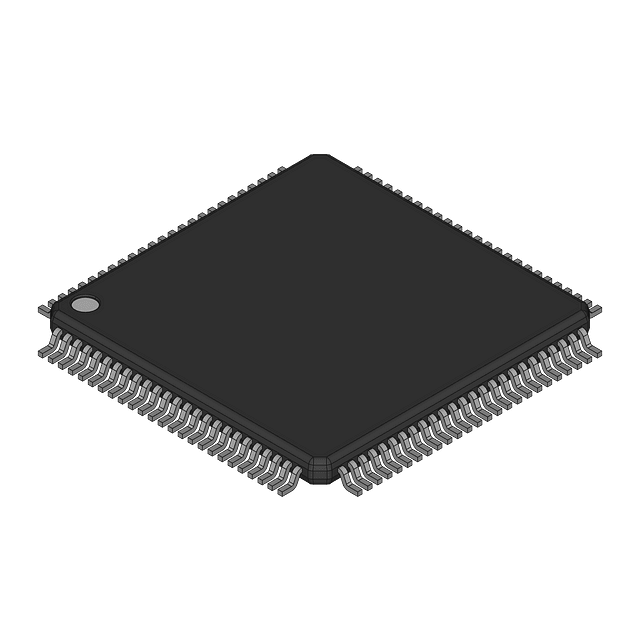

Product Images
