Dual 16-bit digital-to-analog converter (DAC) with an 800 MSPS conversion rate. Features a parallel interface and differential output, offering 16-bit resolution. Operates with a 3.3V supply voltage and has a maximum power dissipation of 450mW. Housed in a QFP package with tin, matte contact plating.
PackageQFP
Power450mW
Quick Jump:
Technical Specifications
Analog Devices AD9788BSVZ technical specifications.
General
Package/Case
QFP
Contact Plating
Tin, Matte
Conversion Rate
800MS/s
Differential Output
Yes
Height
1mm
Integral Nonlinearity (INL)
3.7LSB
Interface
Parallel
Lead Free
Contains Lead
Length
14mm
Max Input Voltage
1.2V
Min Input Voltage
1.2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
450mW
Max Supply Voltage
3.47V
Min Supply Voltage
3.13V
Nominal Supply Current
0pA
Number of Bits
16
Number of Channels
2
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Operating Supply Voltage
3.3V
Output Polarity
Unipolar
Package Quantity
90
Packaging
Tray
Power Dissipation
450mW
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
800MS/s
Series
TxDAC+®
Settling Time
20us
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9788BSVZ Datasheet
Download the complete datasheet for Analog Devices AD9788BSVZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

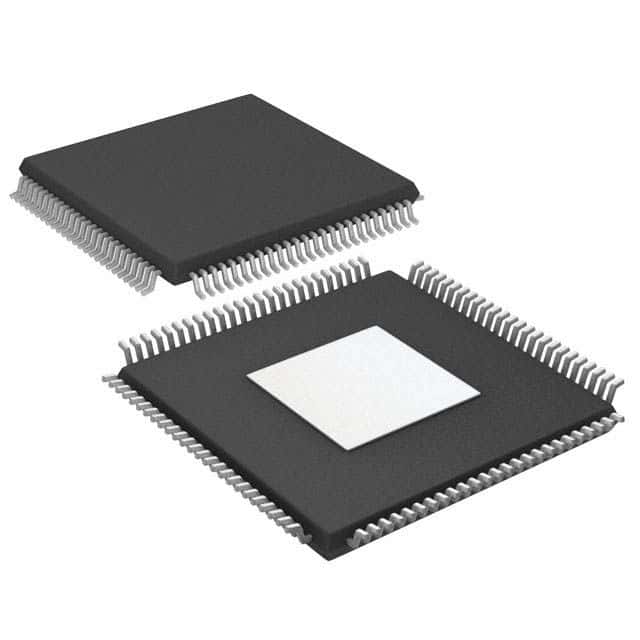

Product Images
