14-Bit, 2400 MSPS RF DAC with 4-Channel Signal Processing
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9789BBC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

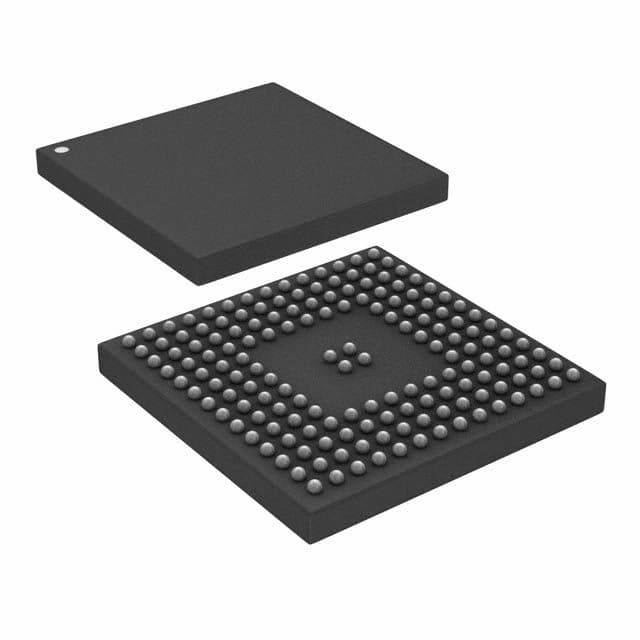

| Package/Case | BGA |
| Contact Plating | Tin, Lead |
| Conversion Rate | 2.4GS/s |
| Differential Output | Yes |
| Interface | LVDS, Parallel |
| Lead Free | Contains Lead |
| Max Input Voltage | 1.2V |
| Min Input Voltage | 1.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.7W |
| Max Supply Voltage | 3.47V |
| Min Supply Voltage | 3.14V |
| Number of Bits | 14 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Package Quantity | 189 |
| Packaging | Tray |
| Power Dissipation | 1.7W |
| Resolution | 14b |
| RoHS Compliant | No |
| Sampling Rate | 2.4GS/s |
| Settling Time | 13ns |
| RoHS | Not Compliant |
Download the complete datasheet for Analog Devices AD9789BBC to view detailed technical specifications.
