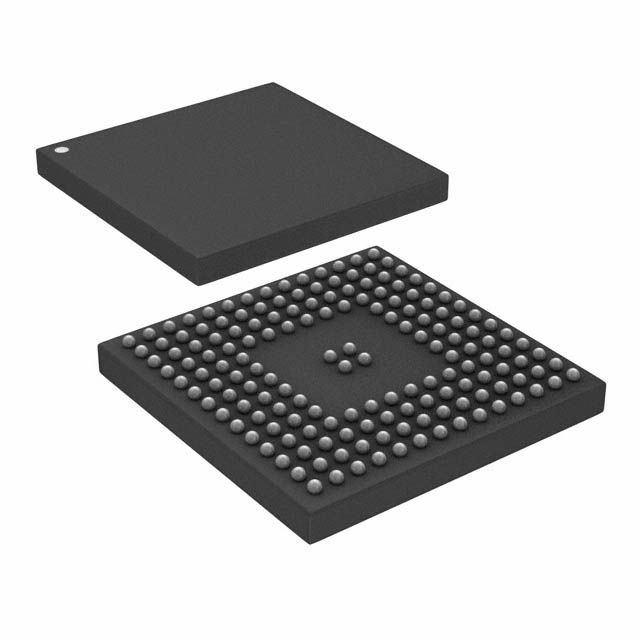

14-bit, 2.4GS/s RF Digital-to-Analog Converter (DAC) featuring 4-channel signal processing. This integrated circuit offers a serial, LVDS, and parallel interface with a differential output. Operating with analog and digital supply voltages between 3.14V and 3.47V, it has a maximum power dissipation of 1.7W. The BGA package with copper, tin, and silver contact plating ensures reliable performance across an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9789BBCZRL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | BGA |
| Contact Plating | Copper, Tin, Silver |
| Conversion Rate | 2.4GS/s |
| Differential Output | Yes |
| Interface | Serial, LVDS, Parallel |
| Lead Free | Contains Lead |
| Max Input Voltage | 1.2V |
| Min Input Voltage | 1.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.7W |
| Max Supply Voltage | 3.47V |
| Min Supply Voltage | 3.14V |
| Number of Bits | 14 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.7W |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 2.4GS/s |
| Settling Time | 13ns |
| Supply Type | Analog, Digital |
| RoHS | Compliant |
