Analog Devices
AD9863BCPZRL-50
Mixed-Signal Front-End (MxFE™) Baseband Transceiver for Broadband Applications
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices AD9863BCPZRL-50 technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Conversion Rate
50MS/s
Input Capacitance
5pF
Input Type
DIFFERENTIAL
Lead Free
Contains Lead
Length
9mm
Max Input Voltage
2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Nominal Supply Current
70mA
Number of Channels
2
Operating Supply Voltage
3.3V
Package Quantity
2500
Packaging
Tape and Reel
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
50MS/s
Signal to Noise Ratio (SNR)
67dB
Thickness
860um
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9863BCPZRL-50 Datasheet
Download the complete datasheet for Analog Devices AD9863BCPZRL-50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

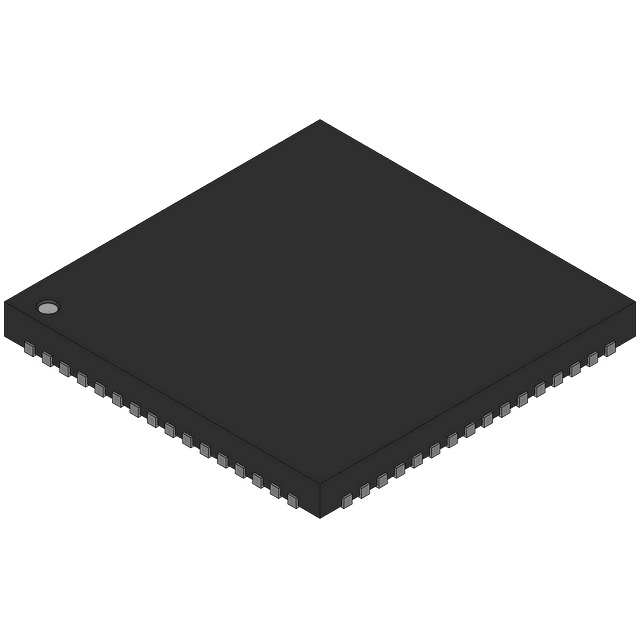

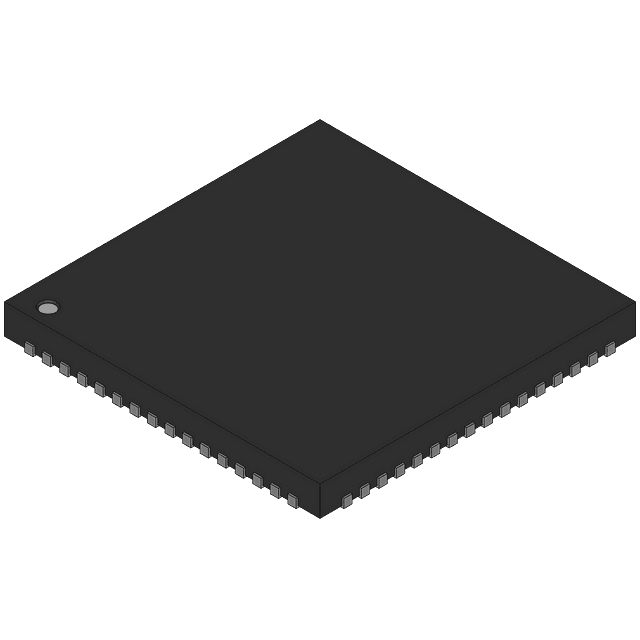

Product Images
