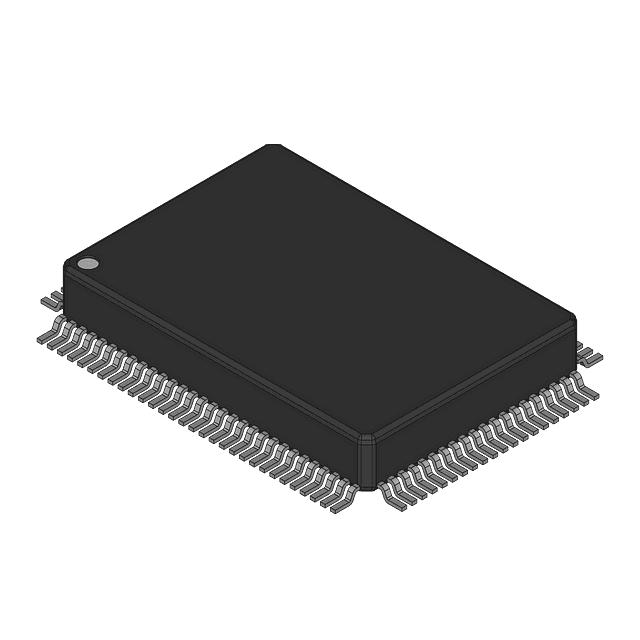

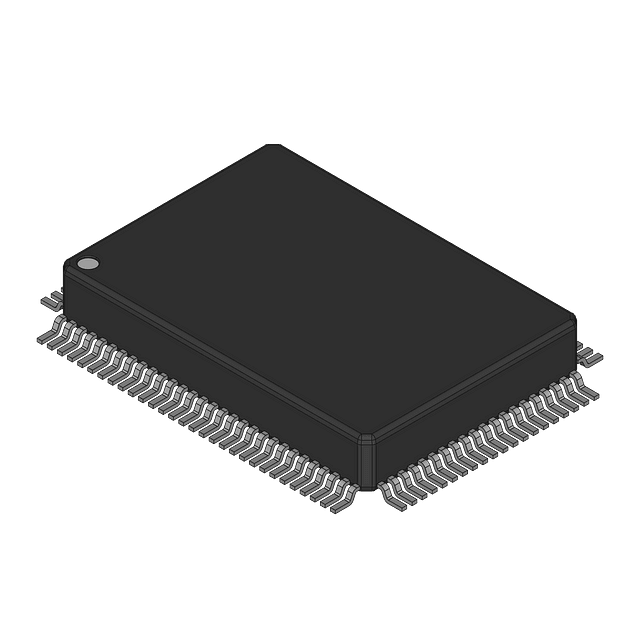

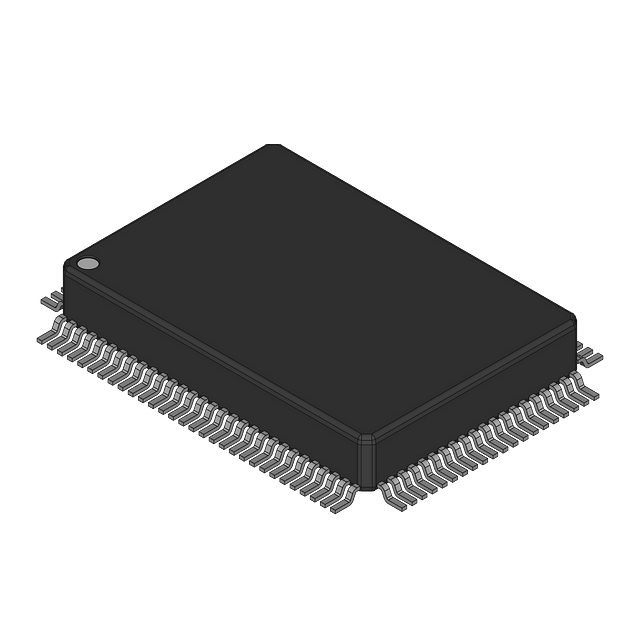

The AD9877ABSZ is a specialized telecom IC with 12-bit resolution and a conversion rate of 33MS/s. It features a LQFP package and is designed for surface mount applications. The IC operates within a temperature range of -40°C to 85°C and is powered by a 3.3V supply voltage, drawing a maximum current of 233mA. The AD9877ABSZ is compliant with RoHS regulations and is packaged in a tray with one unit per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9877ABSZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Conversion Rate | 33MS/s |
| Height | 3.4mm |
| Input Capacitance | 4.2pF |
| Input Type | DIFFERENTIAL |
| Lead Free | Contains Lead |
| Max Input Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.17W |
| Mount | Surface Mount |
| Number of Bits | 12 |
| Number of Channels | 3 |
| Operating Supply Current | 233mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 1.17W |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 33MS/s |
| Series | AD9877 |
| Signal to Noise Ratio (SNR) | 66.2dB |
| RoHS | Compliant |
