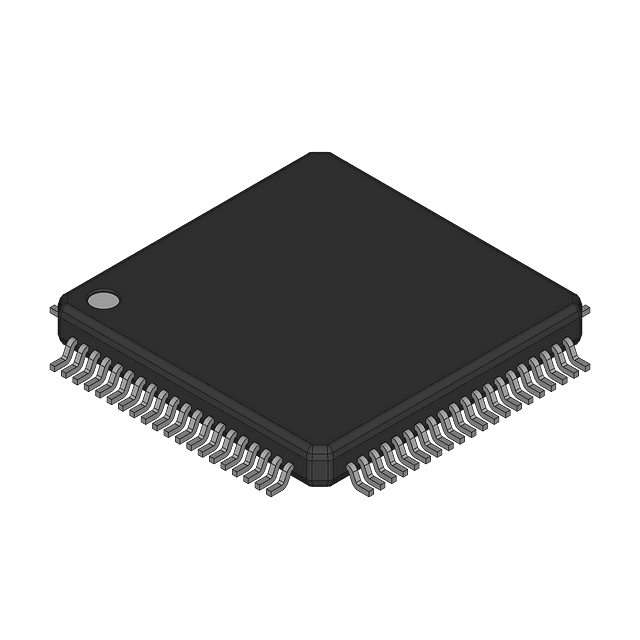

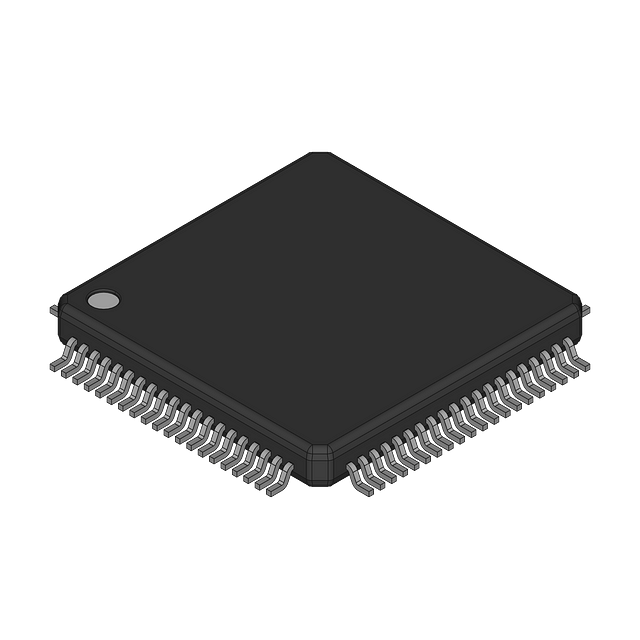

The AD9883AKST-140 is a 3-element bipolar digital-to-analog converter (DAC) with an 8-bit resolution and a sampling rate of 140MS/s. It operates from a 3.3V supply voltage and has a maximum power dissipation of 800mW. The device is packaged in an LQFP-80 package and is suitable for surface mount applications. It can operate over a temperature range of 0°C to 70°C, but is not RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9883AKST-140 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD9883AKST-140 technical specifications.
| Package/Case | LQFP |
| Integral Nonlinearity (INL) | 2.3LSB |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Elements | 3 |
| Operating Supply Voltage | 3.3V |
| Output Voltage | 1.25V |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Dissipation | 800mW |
| Resolution | 8b |
| RoHS Compliant | No |
| Sampling Rate | 140MS/s |
| RoHS | Not Compliant |
Download the complete datasheet for Analog Devices AD9883AKST-140 to view detailed technical specifications.
