8-bit, 3-channel Analog-to-Digital Converter (ADC) with a 140MS/s sampling rate and 500MHz -3dB bandwidth. Features 1.75LSB Integral Nonlinearity (INL) and 1LSB Differential Nonlinearity (DNL). Operates with a 3V to 3.6V single supply voltage, consuming 570mW at 3.3V. Interface options include parallel and analog, with a 1.25V output voltage. Packaged in a 14mm x 20mm x 2.7mm LQFP for surface mounting.
PackageLQFP
MountingSurface Mount
PolarityBipolar
Power570mW
Quick Jump:
Technical Specifications
Analog Devices AD9884AKSZ-100 technical specifications.
General
| -3db Bandwidth | 500MHz |
| Package/Case | LQFP |
| Differential Nonlinearity | 1LSB |
| Display Type | LCD |
| Height | 2.7mm |
| Integral Nonlinearity (INL) | 1.75LSB |
| Interface | Parallel, Analog |
| Lead Free | Contains Lead |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 675mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 265mA |
| Number of A/D Converters | 3 |
| Number of Analog Inputs | 3 |
| Number of Channels | 3 |
| Number of Converters | 3 |
| Number of Elements | 3 |
| Operating Supply Current | 265mA |
| Operating Supply Voltage | 3.3V |
| Output Voltage | 1.25V |
| Package Quantity | 1 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 570mW |
| Power Dissipation | 675mW |
| Radiation Hardening | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 140MS/s |
| Signal to Noise Ratio (SNR) | 46.5dB |
| Supply Type | Single |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9884AKSZ-100 Datasheet
Download the complete datasheet for Analog Devices AD9884AKSZ-100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

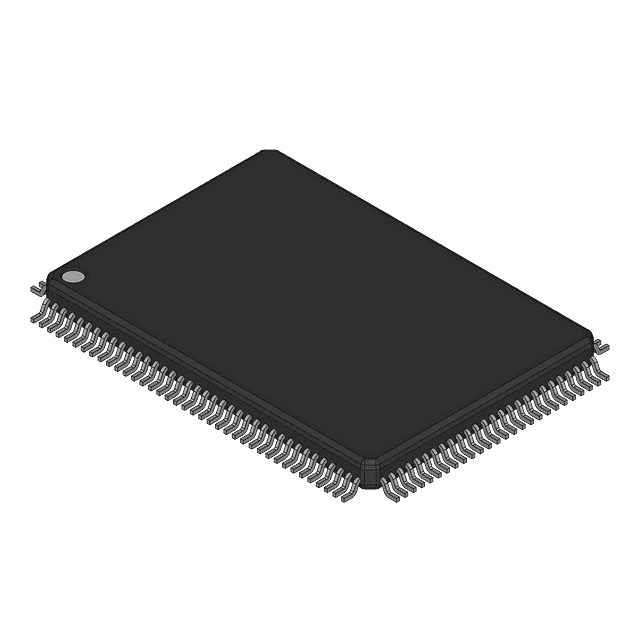

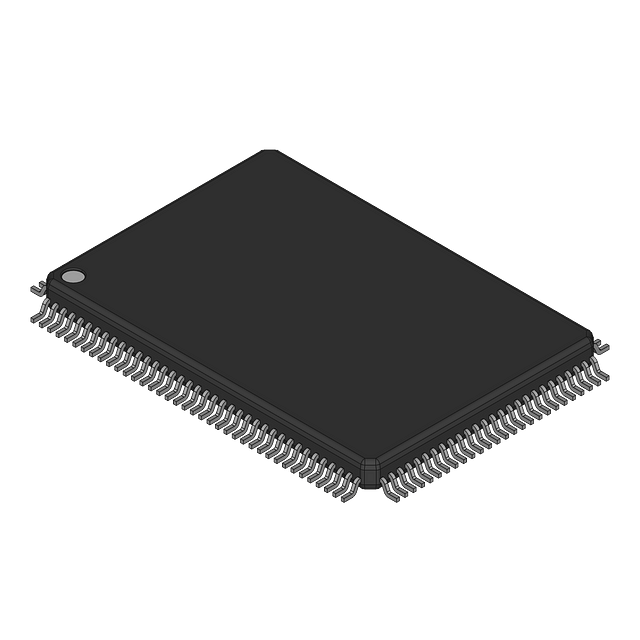

Product Images
