8-bit, 140MS/s Analog-to-Digital Converter (ADC) for LCD display applications. Features a 500MHz -3dB bandwidth, 3 analog inputs, and 3 A/D converters. Operates with a 2.2V to 3.6V supply voltage, consuming 265mA at 3.3V. Offers parallel, analog, and serial interfaces with a 46.2dB signal-to-noise ratio. Packaged in an LQFP surface-mount case with dimensions of 14.1mm (L) x 20.1mm (W) x 2.8mm (H).
PackageLQFP
MountingSurface Mount
PolarityBipolar
Power650mW
Quick Jump:
Technical Specifications
Analog Devices AD9884AKSZ-140 technical specifications.
General
-3db Bandwidth
500MHz
Package/Case
LQFP
Differential Nonlinearity
1.25LSB
Display Type
LCD
Height
2.8mm
Integral Nonlinearity (INL)
2.5LSB
Interface
Parallel, Analog, Serial
Lead Free
Contains Lead
Length
14.1mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
775mW
Max Supply Voltage
3.6V
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of A/D Converters
3
Number of Analog Inputs
3
Number of Channels
3
Number of Converters
3
Number of Elements
3
Operating Supply Current
265mA
Operating Supply Voltage
3.3V
Output Voltage
1.25V
Package Quantity
1
Packaging
Tray
Polarity
Bipolar
Power Consumption
650mW
Power Dissipation
775W
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
140MS/s
Signal to Noise Ratio (SNR)
46.2dB
Width
20.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9884AKSZ-140 Datasheet
Download the complete datasheet for Analog Devices AD9884AKSZ-140 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

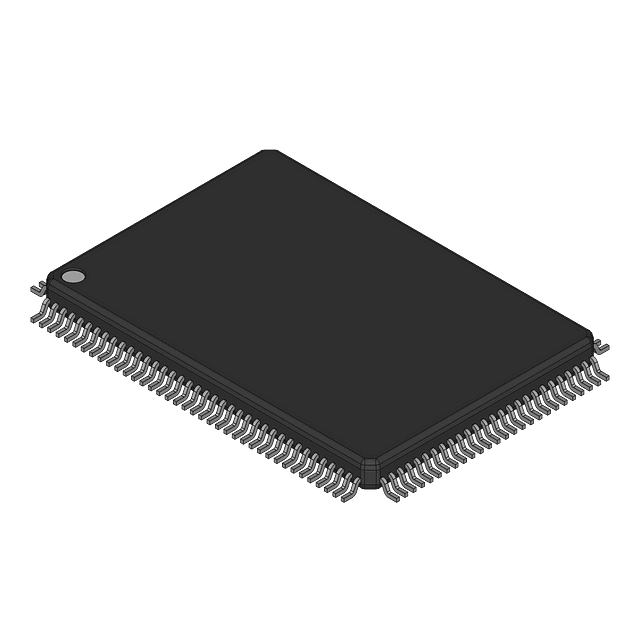

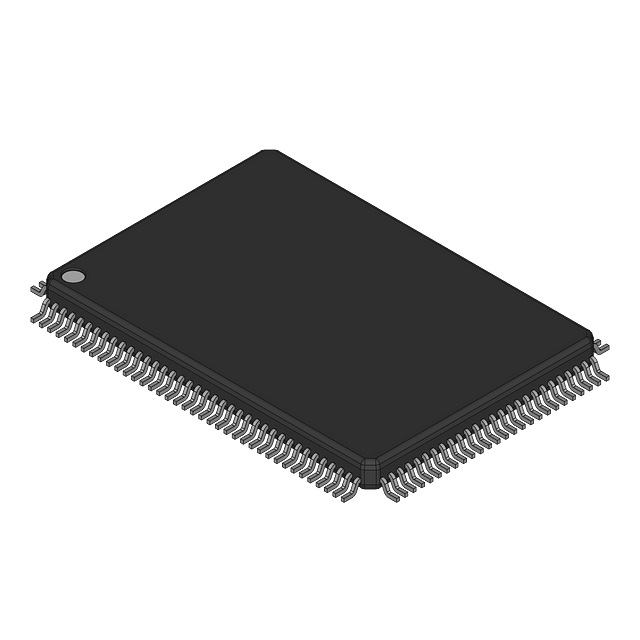

Product Images
