Dual interface integrated circuit for flat panel displays, featuring an analog interface with an 8-bit resolution. Operates at a 3.3V supply voltage with a maximum supply current of 33mA. Supports a maximum frequency of 170MHz and a sampling rate of 170MS/s, with a 3dB bandwidth of 330MHz. Packaged in an LQFP with tin, matte contact plating, suitable for surface mounting.
Frequency170MHz
PackageLQFP
Current258mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD9887AKSZ-100 technical specifications.
General
| -3db Bandwidth | 330MHz |
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Height | 3.6mm |
| Interface | Analog |
| Lead Free | Contains Lead |
| Length | 28.2mm |
| Max Frequency | 170MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 33mA |
| Mount | Surface Mount |
| Operating Supply Current | 258mA |
| Operating Supply Voltage | 3.3V |
| Output Voltage | 2.4V |
| Package Quantity | 24 |
| Packaging | Tray |
| Radiation Hardening | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 170MS/s |
| Supply Current | 258mA |
| Type | Integrated Circuit (IC) |
| Width | 28.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9887AKSZ-100 Datasheet
Download the complete datasheet for Analog Devices AD9887AKSZ-100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

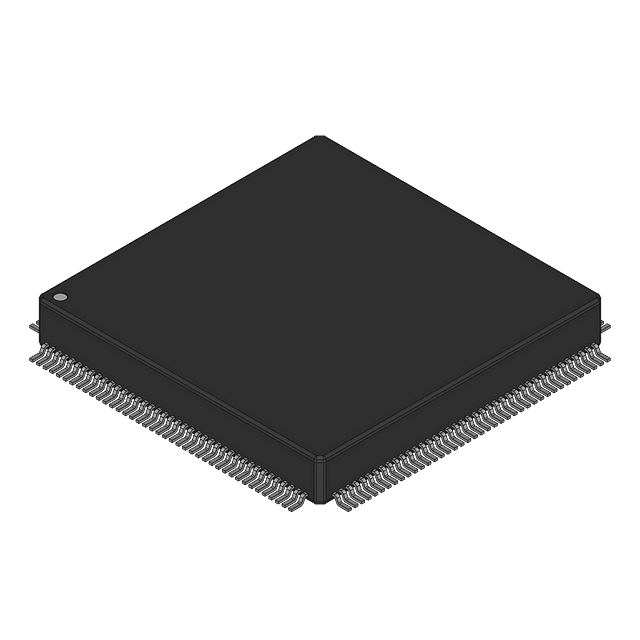

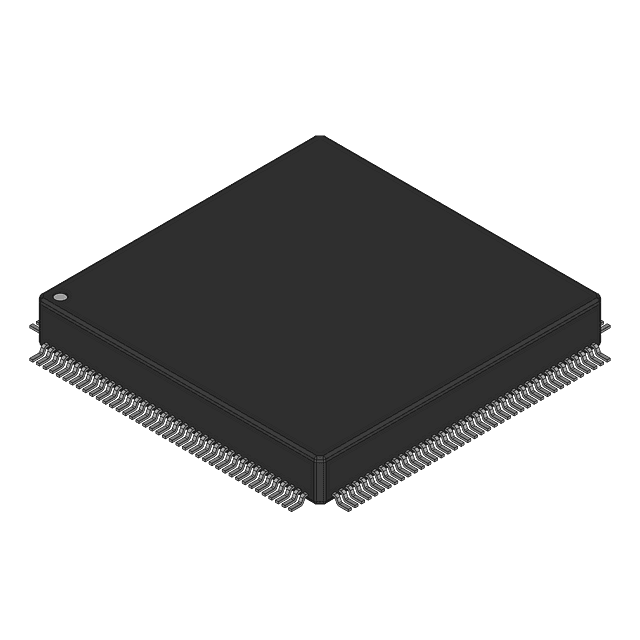

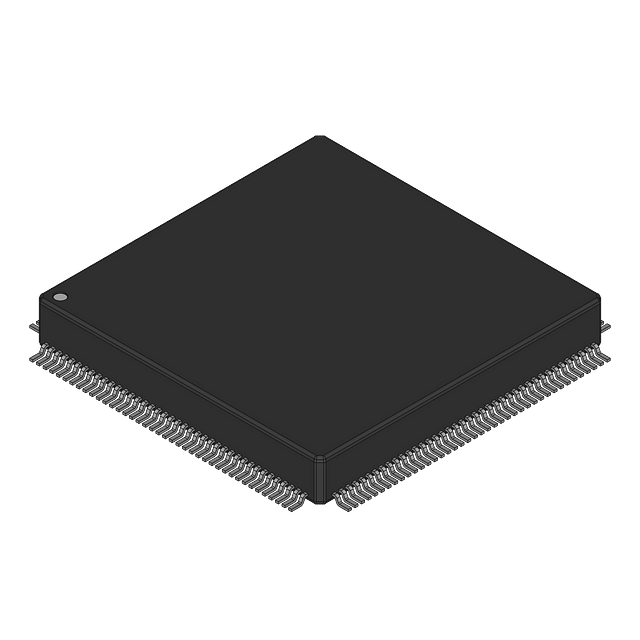

Product Images
