Analog flat panel interface IC featuring 8-bit resolution and a sampling rate of 205 MS/s. Offers 3 analog inputs with a 3-channel A/D converter configuration. Boasts a 500MHz -3dB bandwidth and a maximum operating frequency of 100MHz. Operates from a 3V to 3.6V supply voltage with a typical 3.3V operating voltage. Packaged in an LQFP with tin, matte contact plating, suitable for surface mounting.
Frequency100MHz
PackageLQFP
Current290mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD9888KSZ-100 technical specifications.
General
| -3db Bandwidth | 500MHz |
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Differential Nonlinearity | 1.35LSB |
| Height | 2.7mm |
| Integral Nonlinearity (INL) | 2.5LSB |
| Interface | Serial, 2-Wire |
| Lead Free | Contains Lead |
| Length | 20mm |
| Max Frequency | 100MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1.05W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 3 |
| Number of Analog Inputs | 3 |
| Number of Elements | 3 |
| Operating Supply Current | 290mA |
| Operating Supply Voltage | 3.3V |
| Output Voltage | 1.3V |
| Package Quantity | 66 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Dissipation | 850mW |
| Radiation Hardening | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 205MS/s |
| Signal to Noise Ratio (SNR) | 45dB |
| Supply Current | 290mA |
| Supply Type | Single |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9888KSZ-100 Datasheet
Download the complete datasheet for Analog Devices AD9888KSZ-100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

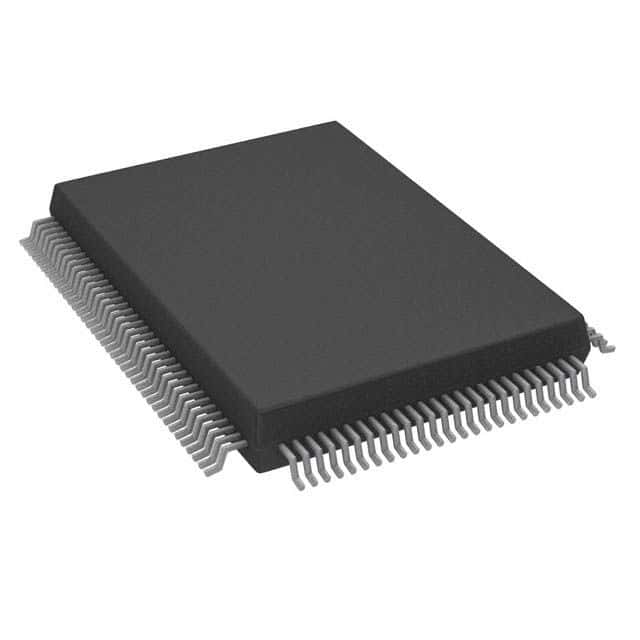

Product Images
