8-bit, 3-channel analog flat panel interface IC with a 205 MS/s sampling rate and 500 MHz -3dB bandwidth. Features serial, 2-wire interface, bipolar polarity, and LQFP package for surface mounting. Operates from a 3V to 3.6V supply, with a typical operating voltage of 3.3V and a maximum power dissipation of 1.15W. Integral nonlinearity is 2.75 LSB, with an output voltage of 1.3V.
PackageLQFP
Current215mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Analog Devices AD9888KSZ-170 technical specifications.
General
-3db Bandwidth
500MHz
Bandwidth
500MHz
Package/Case
LQFP
Height
2.7mm
Integral Nonlinearity (INL)
2.75LSB
Interface
Serial, 2-Wire
Lead Free
Contains Lead
Length
20mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
920mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
3
Number of Analog Inputs
3
Number of Elements
3
Operating Supply Current
290mA
Operating Supply Voltage
3.3V
Output Voltage
1.3V
Packaging
Tray
Polarity
Bipolar
Power Dissipation
1.15W
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
205MS/s
Supply Current
215mA
Termination
SMD/SMT
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9888KSZ-170 Datasheet
Download the complete datasheet for Analog Devices AD9888KSZ-170 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

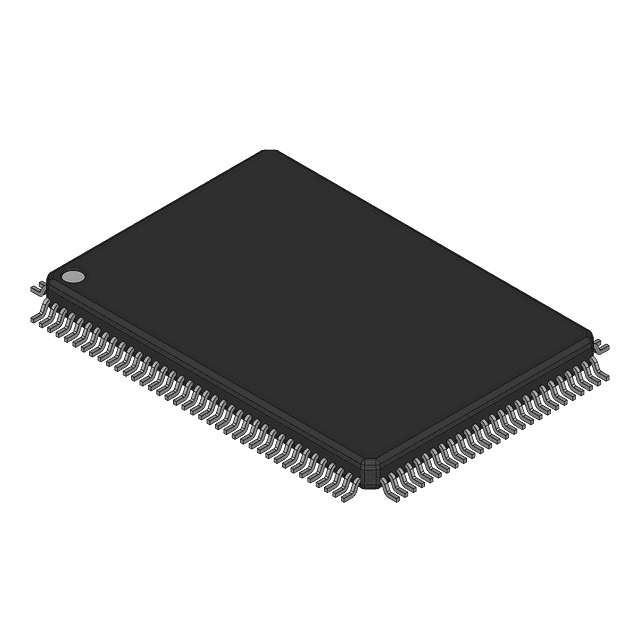

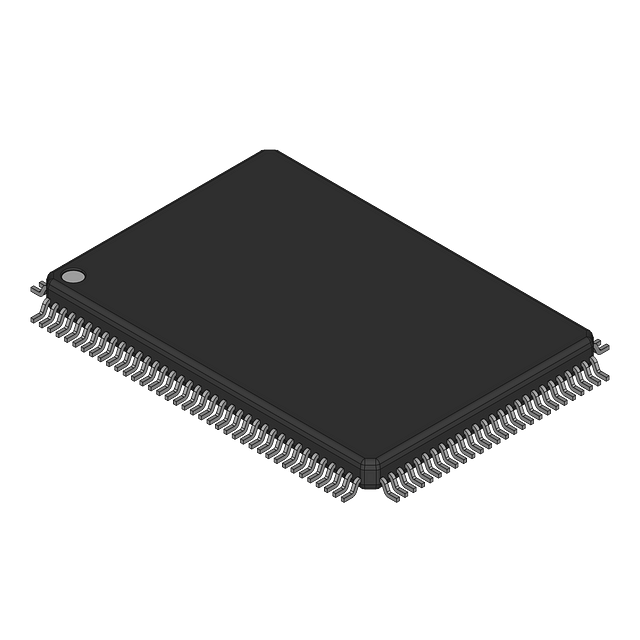

Product Images
