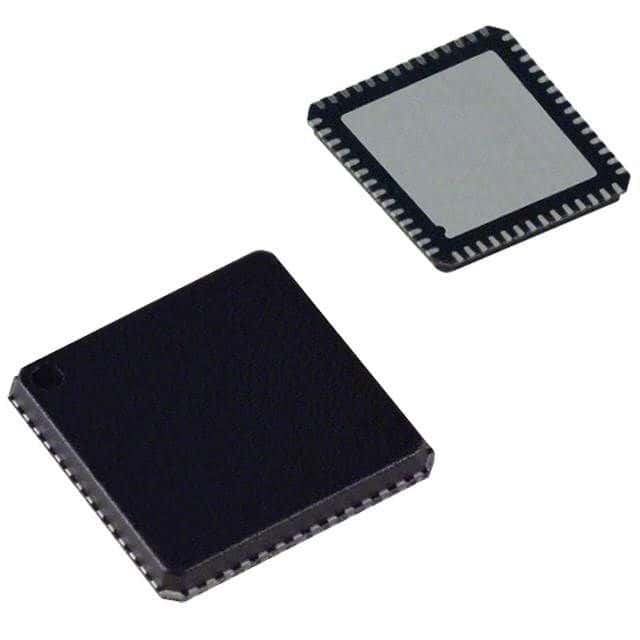

Direct Digital Synthesizer (DDS) with 10-bit resolution, offering a 500MHz output frequency and a 500MS/s conversion rate. This single-DAC integrated circuit features a 1-channel output and an 800Mbps data rate. Designed for surface mount applications, it operates within a 1.71V to 1.89V supply voltage range and has a maximum power dissipation of 351mW. The component is housed in a 56-pin LFCSP package with matte tin contact plating and a width of 8mm, length of 8mm, and height of 1mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9911BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD9911BCPZ technical specifications.
| Contact Plating | Tin, Matte |
| Conversion Rate | 500MS/s |
| Data Rate | 800Mbps |
| Frequency | 500MHz |
| Height | 1mm |
| Lead Free | Contains Lead |
| Length | 8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 351mW |
| Max Supply Current | 73mA |
| Max Supply Voltage | 1.89V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Bits | 10 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 73mA |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 260 |
| Packaging | Tray |
| Power Dissipation | 351mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Width | 8mm |
| RoHS | Compliant |
