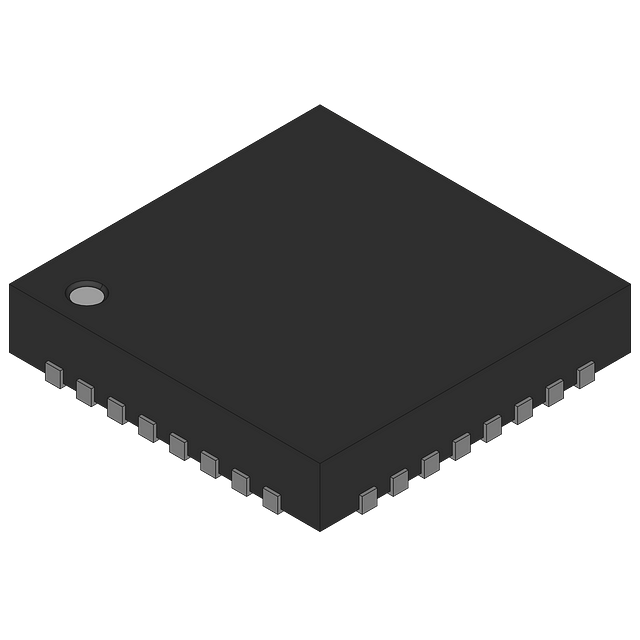

General Purpose Analog Front End (AFE) with 12-bit resolution and a 40MS/s sampling rate. Features a single-ended input and a 76dB Signal-to-Noise Ratio (SNR). Operates from a 2.7V to 3.6V supply, with a typical 3V operating voltage. Housed in a 32-pin LFCSP EP package for surface mounting, offering a 0.5LSB Differential Nonlinearity.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9945KCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Differential Nonlinearity | 0.5LSB |
| Height | 0.83mm |
| Input Type | SINGLE-ENDED |
| Interface | Serial, 3-WIRE, Parallel |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 160mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Operating Supply Voltage | 3V |
| Packaging | Tray |
| Power Dissipation | 140mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 40MS/s |
| Signal to Noise Ratio (SNR) | 76dB |
| Termination | SMD/SMT |
| Width | 5mm |
| RoHS | Compliant |
