Clock Generator & Synthesizer, 400MHz Direct Digital Synthesizer with 14-bit resolution and a single 14-bit DAC. Features a 400 MSPS conversion rate and 25 Mbps data rate. Operates from a 1.71V to 1.89V supply voltage, with a typical 1.8V operating voltage. Packaged in a 48-pin TQFP with tin, matte contact plating, suitable for surface mounting. Offers a wide operating temperature range from -40°C to 105°C.
Frequency400MHz
PackageTQFP
MountingSurface Mount
Power198mW
Quick Jump:
Technical Specifications
Analog Devices AD9954YSVZ technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin, Matte
Conversion Rate
400000KS/s
Data Rate
25Mbps
Frequency
400MHz
Height
1mm
Lead Free
Contains Lead
Length
7mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.89V
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of Bits
14
Number of Converters
1
Number of D/A Converters
1
Operating Supply Voltage
1.8V
Package Quantity
250
Packaging
Tray
Power Consumption
198mW
Power Dissipation
220mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
14b
RoHS Compliant
Yes
Termination
SMD/SMT
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9954YSVZ Datasheet
Download the complete datasheet for Analog Devices AD9954YSVZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

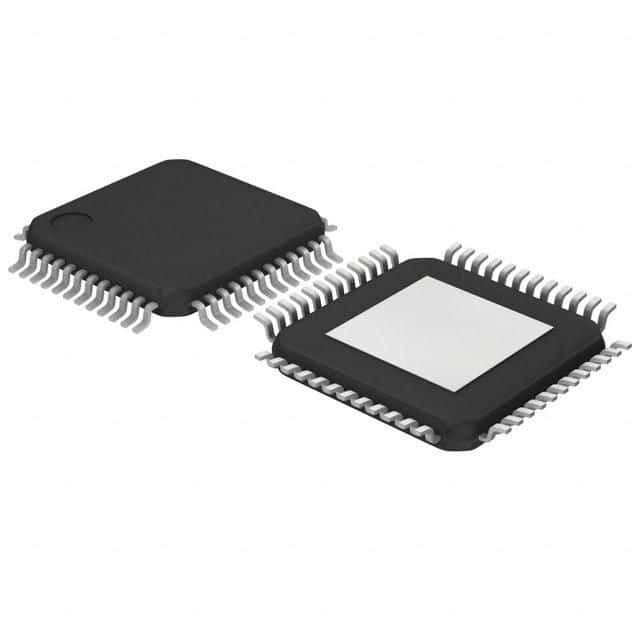

Product Images
