14-bit Direct Digital Synthesizer (DDS) operating up to 400MHz, featuring a single 14-bit Digital-to-Analog Converter (DAC) and one output. This surface-mount IC offers a 1.8V operating supply voltage, with a range of 1.71V to 1.89V, and a power dissipation of 220mW. It supports a wide operating temperature range from -40°C to 105°C and is packaged in a 48-pin TQFP EP for tape and reel distribution. Contact plating is Tin, Matte, and the component is RoHS compliant.
Frequency400MHz
MountingSurface Mount
Power220mW
Quick Jump:
Technical Specifications
Analog Devices AD9954YSVZ-REEL7 technical specifications.
General
Contact Plating
Tin, Matte
Frequency
400MHz
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.89V
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of Bits
14
Number of D/A Converters
1
Number of Outputs
1
Operating Supply Voltage
1.8V
Package Quantity
500
Packaging
Tape and Reel
Power Dissipation
220mW
Resolution
14b
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9954YSVZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD9954YSVZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

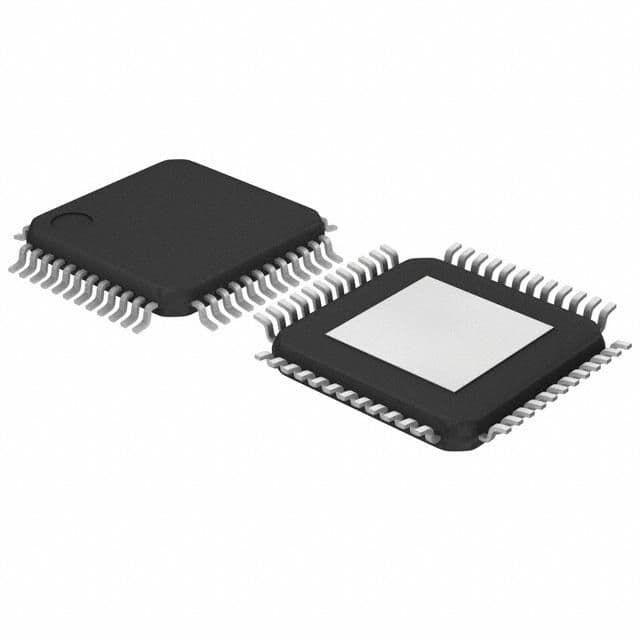

Product Images
