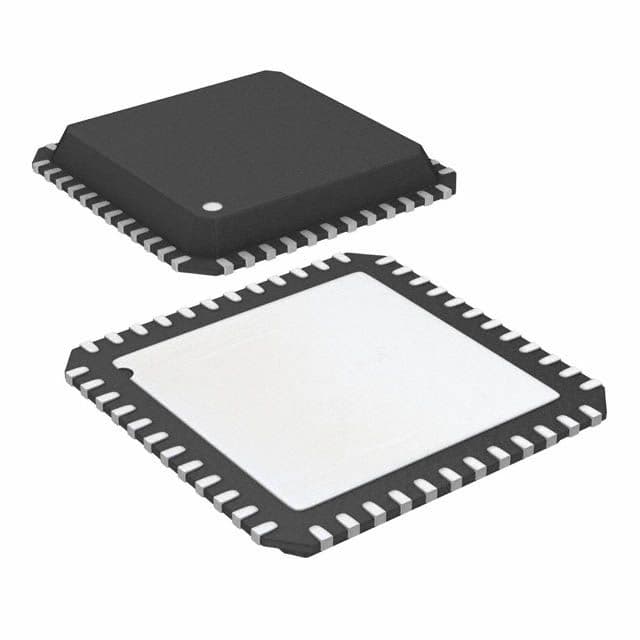

The AD9956YCPZ-REEL7 is a 14-bit 1-channel 1-D/A converter from Analog Devices. It operates within a temperature range of -40°C to 125°C and has a maximum supply current of 85mA. The device is packaged in a lead-free LFCSP EP package and is suitable for surface mount applications. The AD9956YCPZ-REEL7 has a resolution of 14 bits and a signal-to-noise ratio of 67dB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9956YCPZ-REEL7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 85mA |
| Max Supply Voltage | 1.89V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Bits | 14 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Resolution | 14b |
| Signal to Noise Ratio (SNR) | 67dB |
| RoHS | Compliant |
