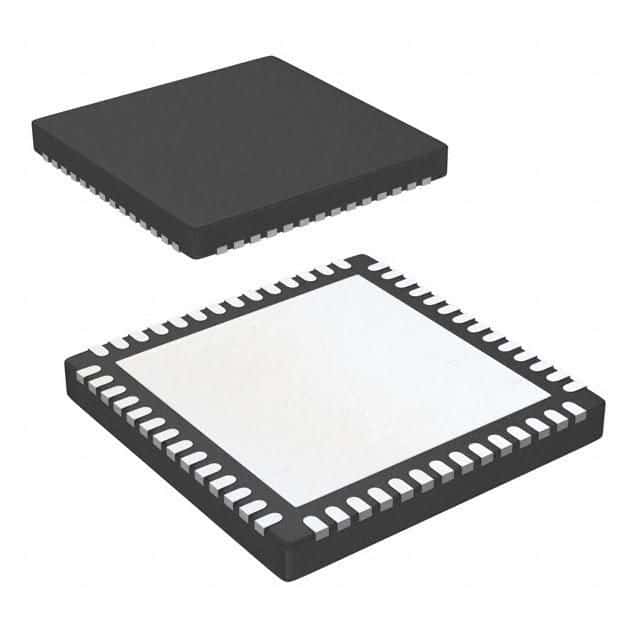

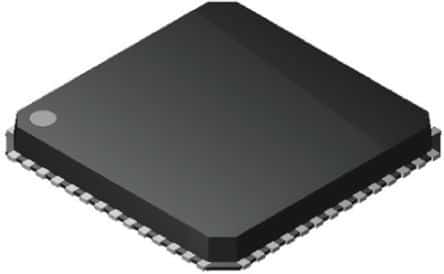

Direct Digital Synthesizer (DDS) with a 500MHz output frequency and 500MS/s conversion rate. Features four 10-bit digital-to-analog converters (DACs) for generating complex waveforms. Operates from a 1.71V to 1.89V supply voltage, with a typical operating supply voltage of 1.8V and a maximum power dissipation of 680mW. This surface-mount component utilizes a serial interface and is housed in a 56-pin LFCSP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD9959BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD9959BCPZ technical specifications.
| Contact Plating | Tin, Matte |
| Conversion Rate | 500MS/s |
| Frequency | 500MHz |
| Height | 0.83mm |
| Input Type | SERIAL |
| Interface | Serial |
| Lead Free | Contains Lead |
| Length | 8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 680mW |
| Max Supply Current | 185mA |
| Max Supply Voltage | 1.89V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Bits | 10 |
| Number of Channels | 4 |
| Number of Converters | 4 |
| Number of D/A Converters | 4 |
| Number of Outputs | 4 |
| Operating Supply Current | 180mA |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 260 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 500MS/s |
| Supply Current | 160mA |
| Termination | SMD/SMT |
| Width | 8mm |
| RoHS | Compliant |
