Broadband MxFE with 10-bit resolution, featuring two analog-to-digital converters and two channels. Operates at 170 MHz with a 100 MS/s sampling rate. Offers a 61dB noise figure and signal-to-noise ratio, with a maximum input voltage of 1.56V. Housed in an LFCSP EP package with tin-matte plating, measuring 10.1mm x 10.1mm x 0.95mm. This RoHS compliant component operates from -40°C to 85°C, consuming 169mA at 3.63V supply.
Frequency170 MHz
PackageLFCSP EP
Current169mA
Power342mW
Quick Jump:
Technical Specifications
Analog Devices AD9961BCPZ technical specifications.
General
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Height | 0.95mm |
| Input Capacitance | 8pF |
| Lead Free | Contains Lead |
| Length | 10.1mm |
| Max Input Voltage | 1.56V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Noise Figure | 61dB |
| Number of A/D Converters | 2 |
| Number of Channels | 2 |
| Operating Frequency | 170 MHz |
| Operating Supply Current | 169mA |
| Operating Supply Voltage | 3.63V |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 342mW |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 100MS/s |
| Series | MxFE™ |
| Signal to Noise Ratio (SNR) | 61dB |
| Supply Current | 169mA |
| Width | 10.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9961BCPZ Datasheet
Download the complete datasheet for Analog Devices AD9961BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

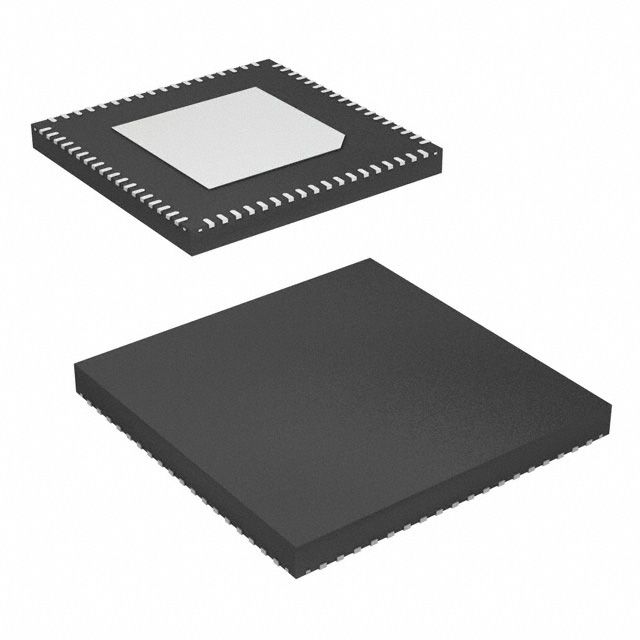

Product Images
