Analog Devices
AD9974BBCZRL
Dual-Channel, 14-bit, CCD Signal Processor with Precision Timing™ Core
PackageBGA
MountingSurface Mount
Power310mW
Quick Jump:
Technical Specifications
Analog Devices AD9974BBCZRL technical specifications.
General
| Package/Case | BGA |
| Input Type | DIFFERENTIAL |
| Interface | Serial, 3-WIRE, Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 3V |
| Min Supply Voltage | 1.6V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Operating Supply Current | 55mA |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 310mW |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 65MS/s |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD9974BBCZRL Datasheet
Download the complete datasheet for Analog Devices AD9974BBCZRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

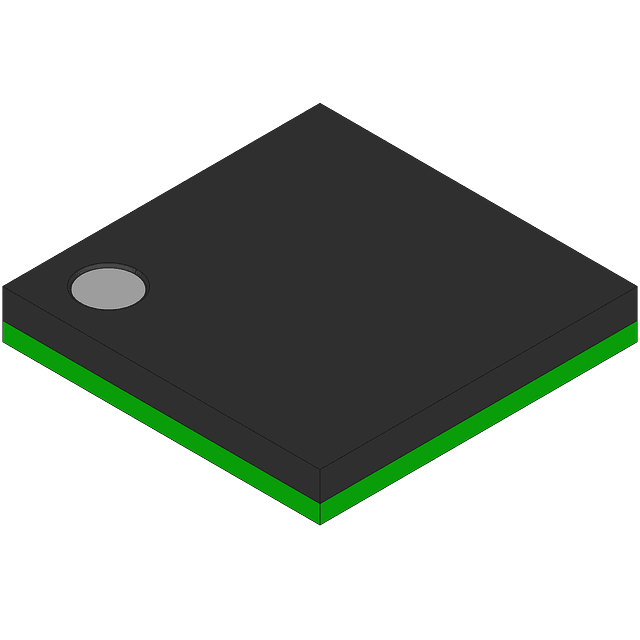

Product Images
