Dual operational amplifier featuring rail-to-rail input/output and overvoltage protection. This general-purpose op amp offers a 786kHz gain bandwidth product and a 501kHz bandwidth. Operating from a 1.5V to 15V dual supply or 3V to 30V single supply, it consumes 120µA operating supply current. Key specifications include a 300µV input offset voltage, 10nA input bias current, and 0.25V/µs slew rate. The component is housed in a 3.2mm x 3.2mm x 0.95mm MSOP package.
PackageMSOP
Quick Jump:
Technical Specifications
Analog Devices ADA4096-2ARMZ technical specifications.
General
-3db Bandwidth
152kHz
Amplifier Type
GENERAL PURPOSE
Bandwidth
501kHz
Package/Case
MSOP
Common Mode Rejection Ratio
77dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
786kHz
Height
0.95mm
Input Bias Current
10nA
Input Capacitance
7pF
Input Offset Voltage (Vos)
300uV
Input Voltage Noise Density
27nV/sqrt Hz
Lead Free
Contains Lead
Length
3.2mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
30V
Min Supply Voltage
3V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
120uA
Output Current per Channel
10mA
Package Quantity
50
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
100dB
Quiescent Current
60uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.25V/µs
Technology
BIPOLAR
Unity Gain Bandwidth Product
550kHz
Voltage Gain
111dB
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4096-2ARMZ Datasheet
Download the complete datasheet for Analog Devices ADA4096-2ARMZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

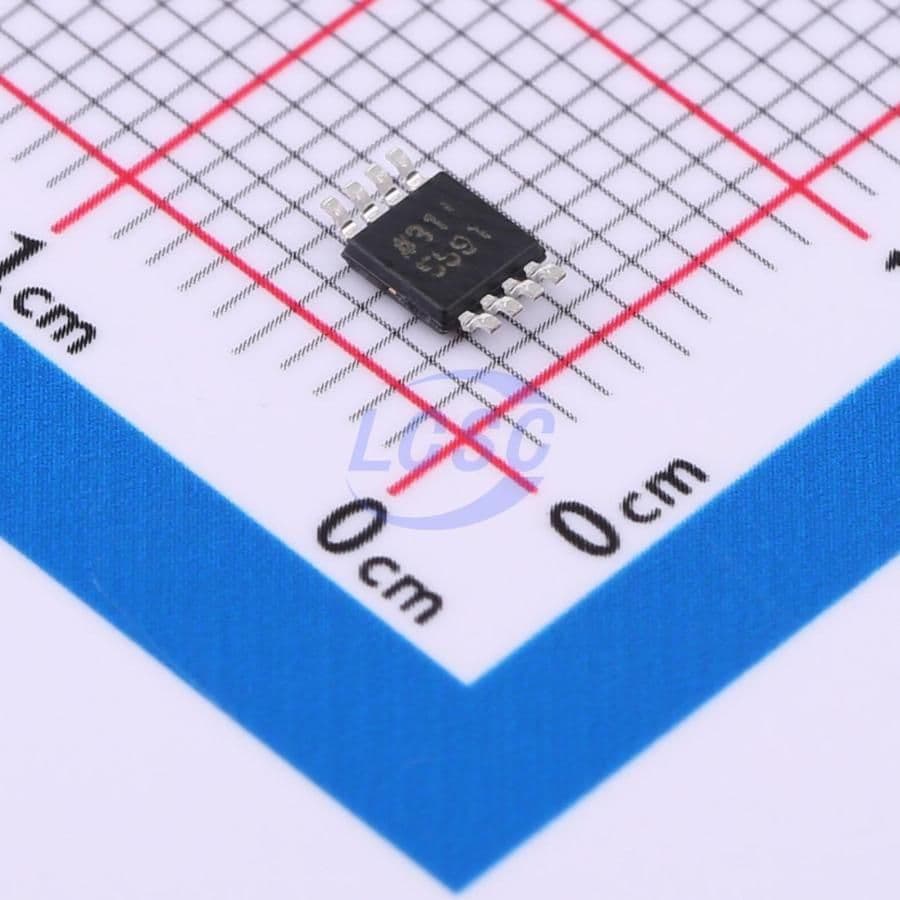

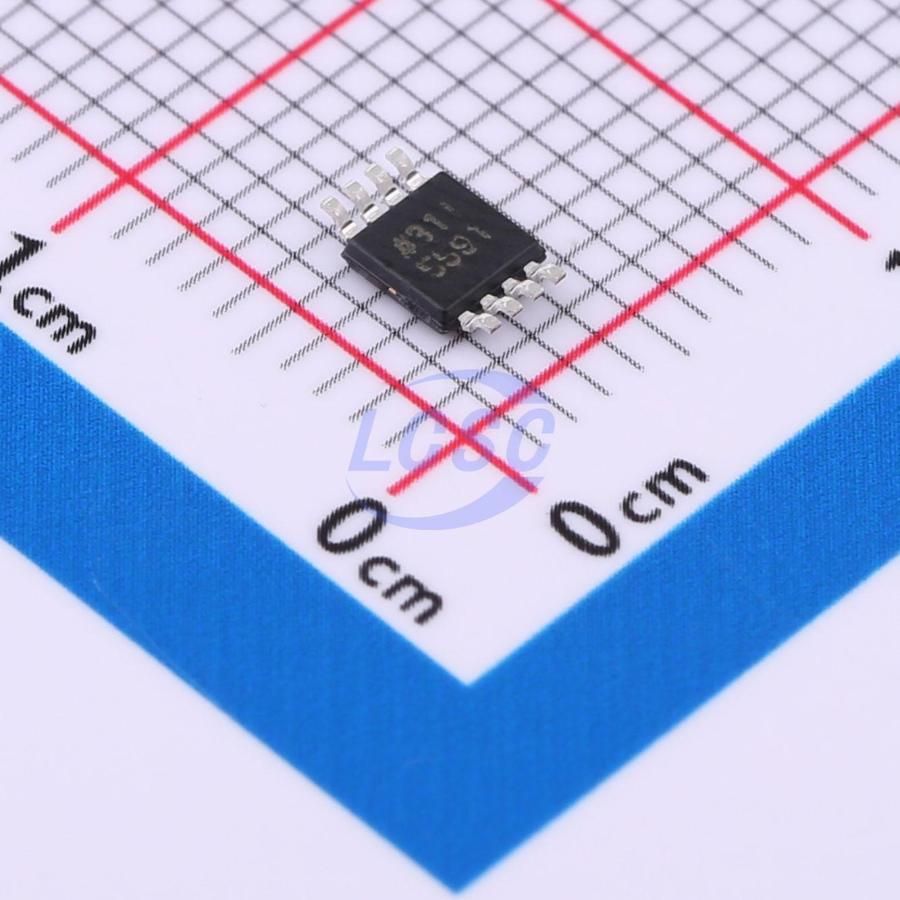

Product Images
