Dual operational amplifier featuring a 310MHz -3dB bandwidth and 1050V/µs slew rate. This high current output line driver offers a 12V operating supply voltage with a maximum of 13.6V, consuming 11.8mA operating supply current. It boasts a 57dB common mode rejection ratio and a 1mV input offset voltage, with an input bias current of 4.5µA. Packaged in an MSOP with tin, matte contact plating, this RoHS compliant component operates from -40°C to 85°C.
PackageMSOP
Current11.8mA
Quick Jump:
Technical Specifications
Analog Devices ADA4311-1ARHZ technical specifications.
General
| -3db Bandwidth | 310MHz |
| Bandwidth | 310MHz |
| Package/Case | MSOP |
| Common Mode Rejection Ratio | 57dB |
| Contact Plating | Tin, Matte |
| Gain Bandwidth Product | 310MHz |
| Height | 0.94mm |
| Input Bias Current | 4.5uA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Contains Lead |
| Length | 3.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 13.6V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 11.8mA |
| Operating Supply Voltage | 12V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | -70dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 1050V/µs |
| Supply Current | 11.8mA |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADA4311-1ARHZ Datasheet
Download the complete datasheet for Analog Devices ADA4311-1ARHZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

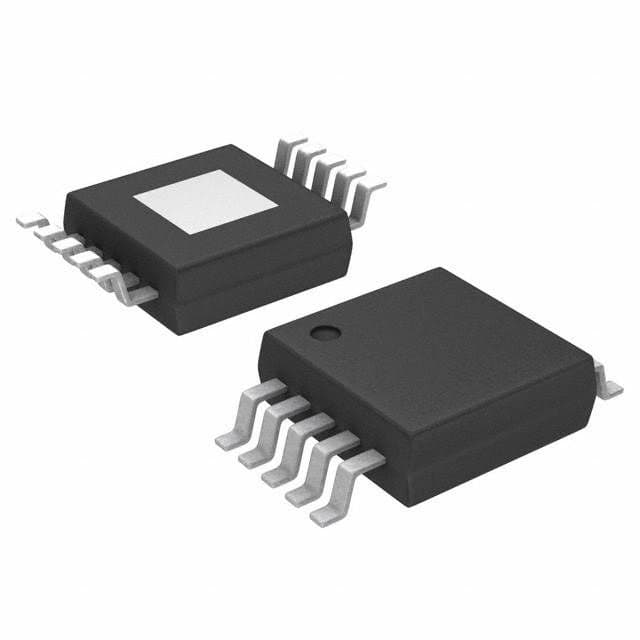

Product Images
