Quad operational amplifier featuring Rail-to-Rail Input/Output (RRIO) and zero input crossover distortion. This CMOS device offers a 50kHz bandwidth, 120dB voltage gain, and a 0.006V/µs slew rate. Key specifications include a low 0.5pA input bias current, 4.7pF input capacitance, and 3mV input offset voltage. Operating from 1.8V to 5V supply, it consumes a mere 28µA operating supply current. The BGA package with copper, tin, silver contact plating ensures robust connectivity.
PackageBGA
Quick Jump:
Technical Specifications
Analog Devices ADA4505-4ACBZ-R7 technical specifications.
General
Bandwidth
50kHz
Package/Case
BGA
Common Mode Rejection Ratio
105dB
Contact Plating
Copper, Tin, Silver
Gain Bandwidth Product
50kHz
Input Bias Current
0.5pA
Input Capacitance
4.7pF
Input Offset Voltage (Vos)
3mV
Input Voltage Noise Density
65nV/sqrt Hz
Lead Free
Contains Lead
Max Dual Supply Voltage
2.5V
Min Dual Supply Voltage
900mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
1.8V
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
28uA
Operating Supply Voltage
3V
Output Current per Channel
40mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
110dB
Quiescent Current
7uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.006V/µs
Technology
CMOS
Unity Gain Bandwidth Product
50kHz
Voltage Gain
120dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4505-4ACBZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADA4505-4ACBZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

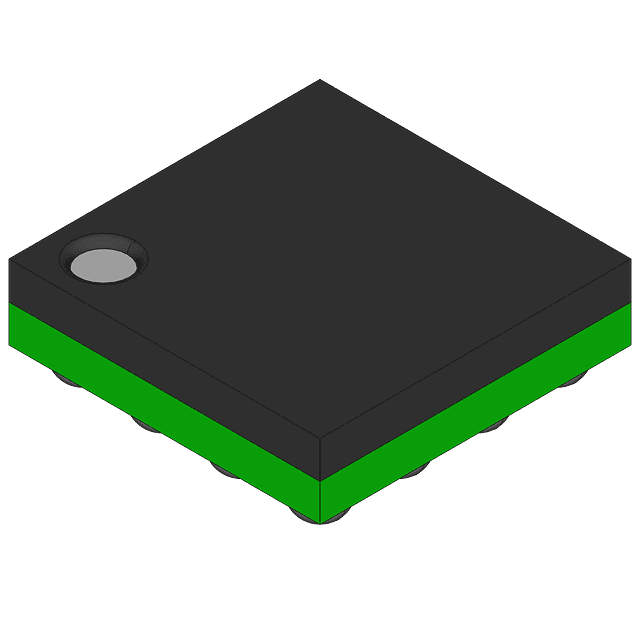

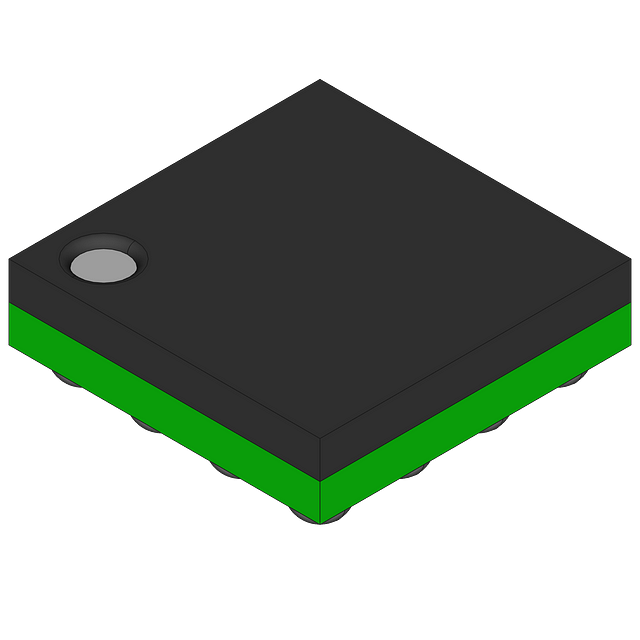

Product Images
