Precision, ultralow noise, rail-to-rail input/output single operational amplifier. Features 3.4MHz bandwidth, 2.5µV input offset voltage, and 90pA input bias current. Offers high CMRR of 160dB and PSRR of 150dB. Operates from a 1.1V to 5.5V supply range with 1.5mA quiescent current. Packaged in a 14-pin SOP for surface mounting.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADA4528-1ACPZ-R7 technical specifications.
General
Bandwidth
3.4MHz
Package/Case
SOP
Common Mode Rejection Ratio
160dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
4MHz
Input Bias Current
90pA
Input Capacitance
33pF
Input Offset Voltage (Vos)
2.5uV
Lead Free
Contains Lead
Max Dual Supply Voltage
2.75V
Min Dual Supply Voltage
1.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1.5mA
Output Current per Channel
40mA
Package Quantity
1500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
150dB
Quiescent Current
1.4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
10us
Slew Rate
0.5V/µs
Unity Gain Bandwidth Product
4MHz
Voltage Gain
130dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4528-1ACPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADA4528-1ACPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

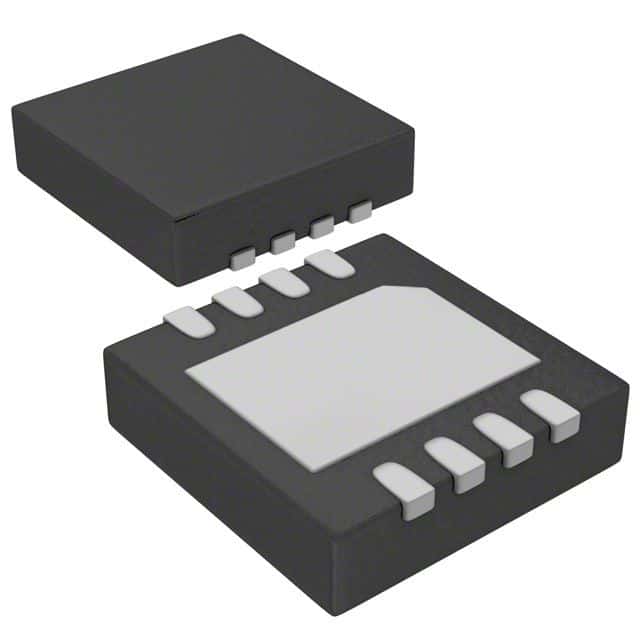

Product Images
