Dual operational amplifier featuring a 3.6MHz bandwidth and 1.3V/µs slew rate. Offers rail-to-rail output, 16nV/√Hz input voltage noise density, and 0.5pA input bias current. Operates from a 1.35V to 5V supply range with a low 180µA quiescent current. Achieves 98dB CMRR and 90dB PSRR, with a 110dB voltage gain. Packaged in BGA for compact integration.
PackageBGA
Quick Jump:
Technical Specifications
Analog Devices ADA4691-2ACBZ-R7 technical specifications.
General
Bandwidth
3.6MHz
Package/Case
BGA
Common Mode Rejection Ratio
98dB
Gain Bandwidth Product
3.6MHz
Height
645um
Input Bias Current
0.5pA
Input Capacitance
7pF
Input Offset Voltage (Vos)
2.5mV
Input Voltage Noise Density
16nV/sqrt Hz
Lead Free
Contains Lead
Max Dual Supply Voltage
2.5V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
2.7V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
180uA
Operating Supply Voltage
3V
Output Current per Channel
55mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
90dB
Quiescent Current
180uA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
1.5us
RoHS Compliant
Yes
Settling Time
1.5us
Slew Rate
1.3V/µs
Unity Gain Bandwidth Product
3.6MHz
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4691-2ACBZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADA4691-2ACBZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

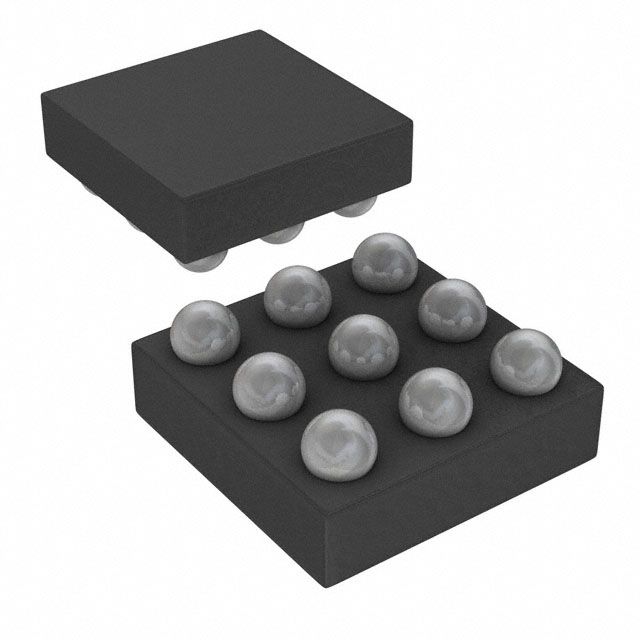

Product Images
