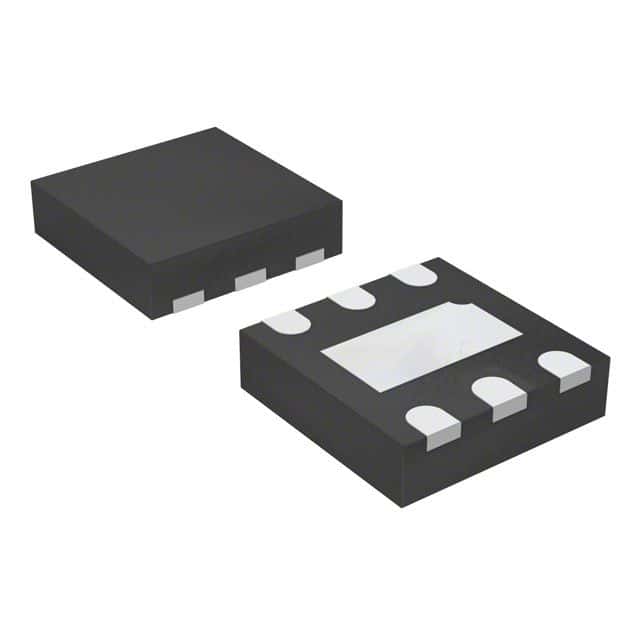

High-speed buffer amplifier featuring a 400MHz -3dB bandwidth and 415V/µs slew rate. This single-channel, 0dB gain amplifier operates from a 4V to 17V supply range with a low 1.4mA quiescent current. It offers a 5ns settling time and is presented in a surface-mount LFCSP EP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADA4800ACPZ-R7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADA4800ACPZ-R7 technical specifications.
| -3db Bandwidth | 400MHz |
| Amplifier Type | BUFFER |
| Bandwidth | 400MHz |
| Package/Case | LFCSP EP |
| Gain | 0dB |
| Input Bias Current | 1uA |
| Input Offset Voltage (Vos) | 30mV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 17V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 1.4mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.4mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Settling Time | 5ns |
| Slew Rate | 415V/µs |
| Supply Current | 1.4mA |
| RoHS | Compliant |
