ADA4817-2ACPZ-RL

Datasheet

Dual 1.05GHz Op Amp, Low Noise, FET, 870V/µs Slew Rate

Analog Devices

ADA4817-2ACPZ-RL

Name: ADA4817-2ACPZ-RL Analog Devices
Brand: Analog Devices
SKU: ADA4817-2ACPZ-RL

Active

Dual 1.05GHz Op Amp, Low Noise, FET, 870V/µs Slew Rate

Dual, low noise, 1 GHz operational amplifier featuring a 1.05 GHz -3dB bandwidth and 410 MHz gain bandwidth product. This FET-input amplifier offers a high slew rate of 870V/µs and a settling time of 9ns, with 2 amplifiers per IC. Designed for dual supply operation from 2.5V to 5V, it boasts a low input bias current of 2pA and an input offset voltage of 2mV. The device operates within a temperature range of -40°C to 105°C and is available in an LFCSP EP package, supplied on tape and reel.

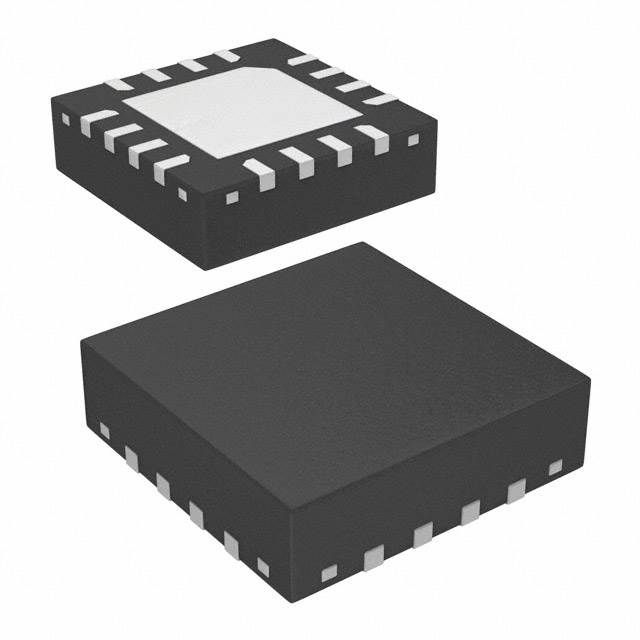

PackageLFCSP EP

Current42mA

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

-3db Bandwidth	1.05GHz
Package/Case	LFCSP EP
Common Mode Rejection Ratio	-90dB
Contact Plating	Tin, Matte
Dual Supply Voltage	3V
Gain Bandwidth Product	410MHz
Input Bias Current	2pA
Input Capacitance	1.5pF
Input Offset Voltage (Vos)	2mV
Lead Free	Contains Lead
Max Dual Supply Voltage	5V
Min Dual Supply Voltage	2.5V
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Supply Voltage	10V
Min Supply Voltage	5V
Number of Amplifiers	2
Number of Channels	2
Number of Circuits	2
Number of Elements	2
Operating Supply Current	42mA
Operating Supply Voltage	9V
Output Current	70mA
Output Current per Channel	40mA
Package Quantity	5000
Packaging	Tape and Reel
Power Supply Rejection Ratio (PSRR)	-72dB
Quiescent Current	21mA
RoHS Compliant	Yes
Series	FastFET™
Settling Time	9ns
Slew Rate	870V/µs
Supply Current	42mA
Technology	FET
Unity Gain Bandwidth Product	410MHz
Voltage Gain	63dB
