Dual high-speed operational amplifier featuring 850MHz -3dB bandwidth and 1500V/µs slew rate. This IC offers ultralow distortion and low noise performance with a 400MHz gain bandwidth product. Operating from a 4.5V to 10.5V supply range, it consumes 11mA quiescent current and delivers 50mA output current per channel. The LFCSP EP package with tin, matte contact plating ensures reliable connectivity.
PackageLFCSP EP
Current11mA
Quick Jump:
Technical Specifications
Analog Devices ADA4857-2YCPZ-RL technical specifications.
General
| -3db Bandwidth | 850MHz |
| Bandwidth | 750MHz |
| Package/Case | LFCSP EP |
| Common Mode Rejection Ratio | -86dB |
| Contact Plating | Tin, Matte |
| Gain Bandwidth Product | 400MHz |
| Input Bias Current | 2uA |
| Input Capacitance | 2pF |
| Input Offset Voltage (Vos) | 4.5mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 5.25V |
| Min Dual Supply Voltage | 2.25V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 10.5V |
| Min Supply Voltage | 4.5V |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 11mA |
| Operating Supply Voltage | 10V |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | -62dB |
| Quiescent Current | 5.5mA |
| RoHS Compliant | Yes |
| Settling Time | 15ns |
| Slew Rate | 1500V/µs |
| Supply Current | 11mA |
| Voltage Gain | 57dB |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADA4857-2YCPZ-RL Datasheet
Download the complete datasheet for Analog Devices ADA4857-2YCPZ-RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

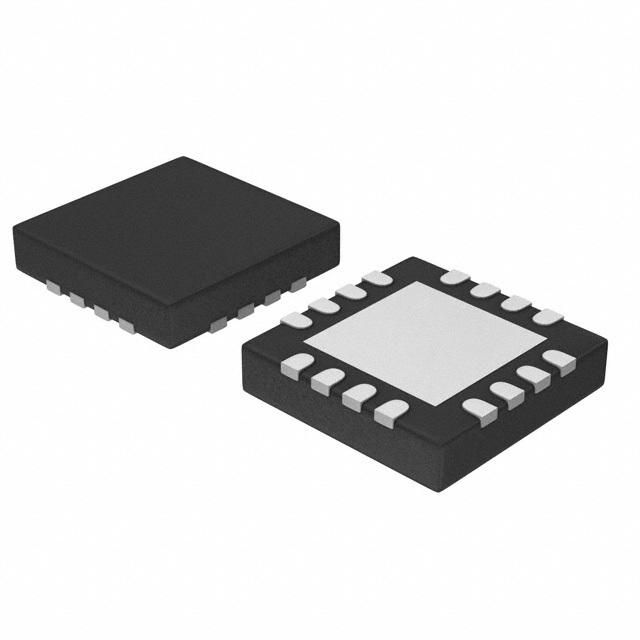

Product Images
