Dual operational amplifier featuring a 230MHz -3dB bandwidth and 90MHz gain bandwidth product. Delivers 120V/µs slew rate and 45ns settling time with a 110dB voltage gain. Offers rail-to-rail output, 1 nV/√Hz input voltage noise, and 120dB CMRR. Operates from a dual supply voltage range of 1.5V to 5V, with a maximum supply voltage of 10V. Housed in an LFCSP EP package, this RoHS compliant component is supplied on tape and reel.
PackageLFCSP EP
Current6mA
Quick Jump:
Technical Specifications
Analog Devices ADA4896-2ACPZ-RL technical specifications.
General
-3db Bandwidth
230MHz
Package/Case
LFCSP EP
Common Mode Rejection Ratio
120dB
Contact Plating
Tin, Matte
Dual Supply Voltage
3V
Gain Bandwidth Product
90MHz
Input Bias Current
11uA
Input Capacitance
3pF
Input Offset Voltage (Vos)
500uV
Lead Free
Contains Lead
Max Dual Supply Voltage
5V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
10V
Min Supply Voltage
3V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
1
Operating Supply Current
6mA
Output Current
80mA
Output Current per Channel
80mA
Package Quantity
5000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
125dB
Quiescent Current
3mA
RoHS Compliant
Yes
Settling Time
45ns
Slew Rate
120V/µs
Supply Current
6mA
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4896-2ACPZ-RL Datasheet
Download the complete datasheet for Analog Devices ADA4896-2ACPZ-RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

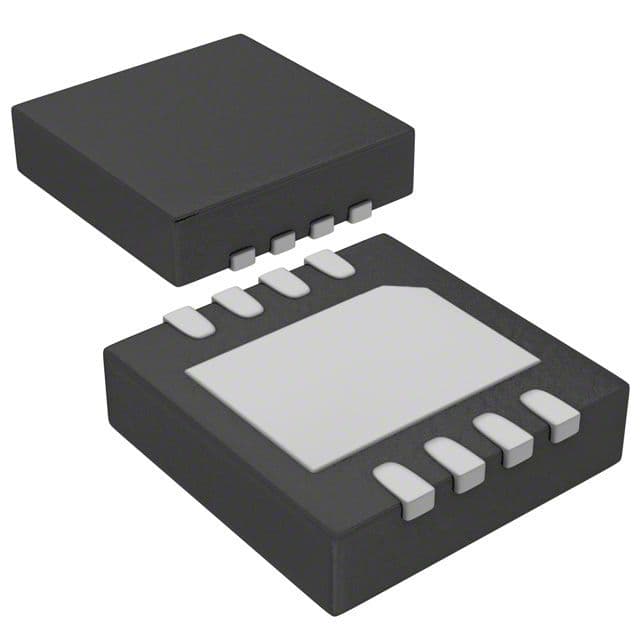

Product Images
