Differential amplifier with 1.35GHz bandwidth, ideal for low voltage ADCs. Features 3400V/µs slew rate and 64dB voltage gain. Operates from 3V to 5.5V supply with 34mA typical current. Offers 77dB CMRR and 71dB PSRR. Packaged in LFCSP EP for surface mounting.
PackageLFCSP EP
Current34mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADA4930-1YCPZ-R7 technical specifications.
General
-3db Bandwidth
1.35GHz
Amplifier Type
DIFFERENTIAL
Bandwidth
1.35GHz
Package/Case
LFCSP EP
Common Mode Rejection Ratio
77dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
1.35GHz
Input Bias Current
34uA
Input Offset Voltage (Vos)
150uV
Input Resistance
3MR
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
34mA
Operating Supply Voltage
3.3V
Output Current per Channel
30mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
71dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
3400V/µs
Supply Current
34mA
Voltage Gain
64dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4930-1YCPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADA4930-1YCPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

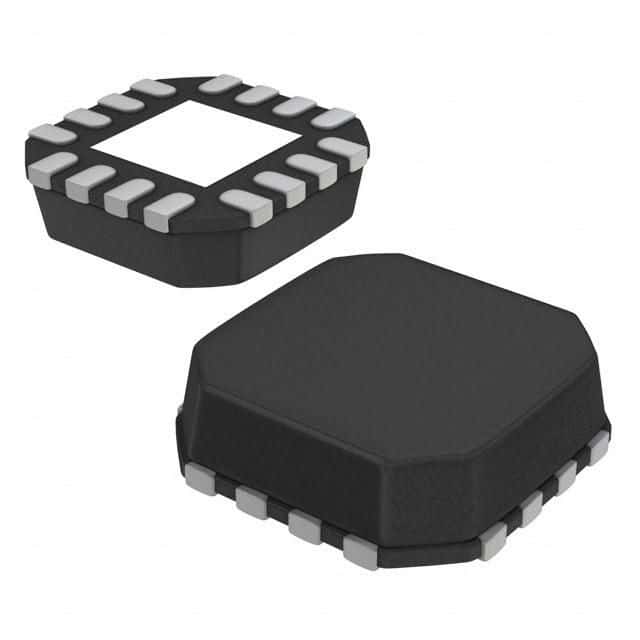

Product Images
