SigmaDSP® 28/56-bit audio processor, a surface mount LQFP integrated circuit, offers 24-bit resolution and 100dB signal-to-noise ratio. Featuring two ADCs and four DACs, this specialized IC operates at 50MHz with I2C and SPI interfaces. It supports a supply voltage range of 1.7V to 1.84V and includes 12 GPIO pins.
Frequency50MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADAU1701JSTZ technical specifications.
General
Package/Case
LQFP
Contact Plating
Tin, Matte
Frequency
50MHz
Height
1.4mm
Interface
I2C, SPI
Lead Free
Contains Lead
Length
7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
286.5mW
Max Supply Voltage
1.84V
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Converters
6
Number of GPIO
12
Operating Supply Current
40mA
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
24b
RoHS Compliant
Yes
Series
SigmaDSP®
Signal to Noise Ratio (SNR)
100dB
Termination
SMD/SMT
Weight
0.006409oz
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADAU1701JSTZ Datasheet
Download the complete datasheet for Analog Devices ADAU1701JSTZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

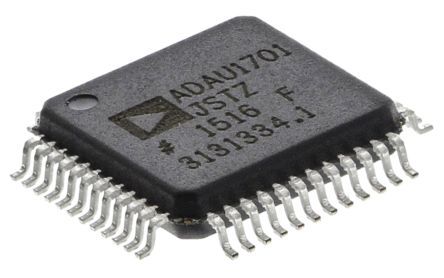

Product Images
