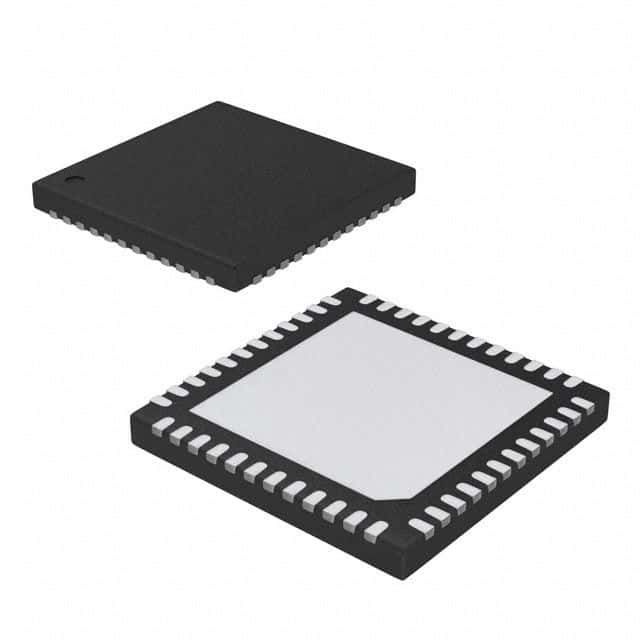

Low power clock fanout buffer with 1.8V operating supply voltage, featuring a 1.2GHz maximum frequency. This integrated circuit offers 12 LVDS/24 CMOS outputs and supports both serial and parallel interfaces. It operates in differential mode with a propagation delay of 2.7ns and a turn-on delay time of 4.2ns. Packaged in an LFCSP EP with tin, matte contact plating, this RoHS compliant component is designed for a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADCLK854BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Contact Plating | Tin, Matte |
| Frequency | 1.2GHz |
| Height | 0.95mm |
| Input | CMOS |
| Interface | Serial, Parallel |
| Lead Free | Contains Lead |
| Length | 7mm |
| Max Frequency | 1.2GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 168mA |
| Max Supply Voltage | 1.89V |
| Min Supply Voltage | 1.71V |
| Mode of Operation | DIFFERENTIAL |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Number of Outputs | 12 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 260 |
| Packaging | Tray |
| Propagation Delay | 2.7ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 4.2ns |
| Width | 7mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADCLK854BCPZ to view detailed technical specifications.
