1.8V low power clock fanout buffer with 12 LVDS/24 CMOS outputs. Features a maximum operating frequency of 1.2GHz and a propagation delay of 4.2ns. Operates from a 1.71V to 1.89V supply, with a nominal 1.8V operating voltage. Designed for differential mode operation with two inputs and one circuit. Packaged in LFCSP EP, tape and reel, with 750 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADCLK854BCPZ-REEL7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

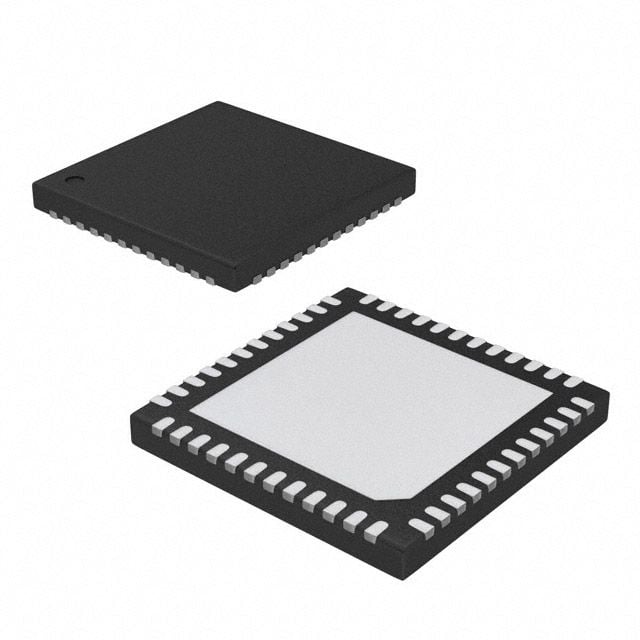

| Package/Case | LFCSP EP |
| Input | Clock |
| Lead Free | Contains Lead |
| Max Frequency | 1.2GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.89V |
| Min Supply Voltage | 1.71V |
| Mode of Operation | DIFFERENTIAL |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Number of Outputs | 12 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Propagation Delay | 4.2ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SiGe |
| RoHS | Compliant |
