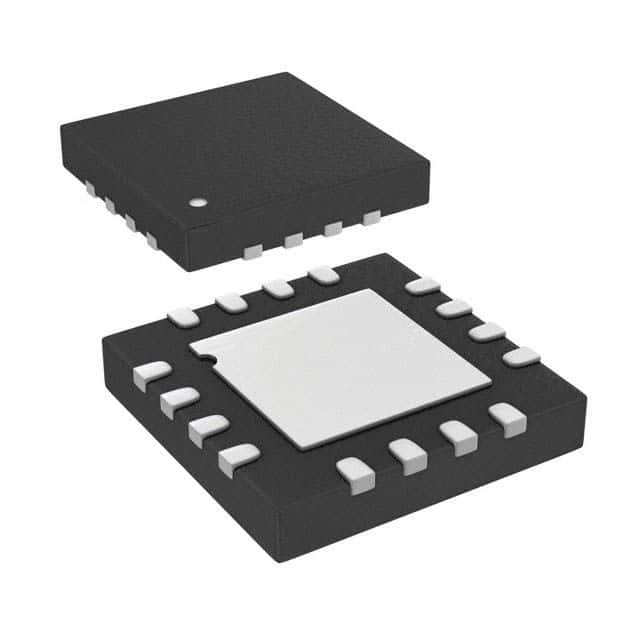

Ultrafast SiGe ECL Clock/Data Buffer, a single-circuit buffer amplifier designed for high-speed signal distribution. Features a 7.5GHz maximum operating frequency and 0.095ns propagation delay. Operates from a 2.375V to 3.63V supply voltage with a maximum supply current of 97mA. Packaged in an LFCSP EP surface-mount package, measuring 3mm x 3mm x 0.9mm. Suitable for operation across a -40°C to 125°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADCLK925BCPZ-WP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Frequency | 7.5GHz |
| Height | 0.9mm |
| Input | Clock |
| Lead Free | Contains Lead |
| Length | 3mm |
| Max Frequency | 7.5GHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 97mA |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Package Quantity | 50 |
| Packaging | Tray |
| Propagation Delay | 0.095ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SiGe |
| Supply Current | 77mA |
| Turn-On Delay Time | 0.125ns |
| Width | 3mm |
| RoHS | Compliant |
