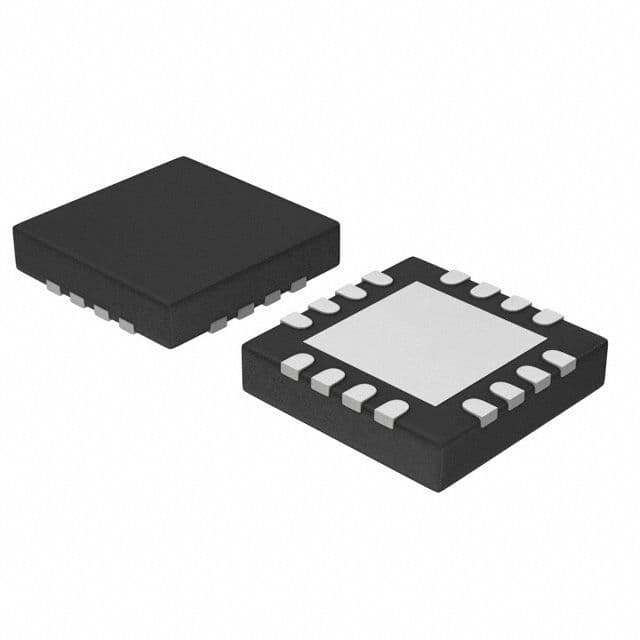

The ADCLK944BCPZ-WP is a 7GHz CMOS clock buffer with 8 outputs, packaged in a LFCSP EP. It operates over a temperature range of -40°C to 85°C and is RoHS compliant. The device has a nominal supply current of 139mA and a maximum supply current of 165mA. It is not radiation hardened and is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADCLK944BCPZ-WP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Frequency | 7GHz |
| Height | 0.75mm |
| Input | CMOS |
| Length | 3.1mm |
| Max Frequency | 7GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 165mA |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.375V |
| Nominal Supply Current | 139mA |
| Number of Circuits | 1 |
| Number of Outputs | 8 |
| Package Quantity | 50 |
| Packaging | Tray |
| Propagation Delay | 0.13ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SiGe |
| Turn-On Delay Time | 0.13ns |
| Width | 3.1mm |
| RoHS | Compliant |
