Single-channel comparator with integrated 0.6V reference, featuring an open-drain active-high output. Operating from 2.25V to 5.5V, this component offers a 15mV hysteresis and a 5µs propagation delay. Housed in a compact 4-pin SC package with tin matte plating, it boasts a low operating supply current of 10µA and a maximum power dissipation of 83µW. Designed for a wide temperature range of -40°C to 125°C, it is RoHS compliant.
PackageSC
Voltage5V
Current15uA
Power83uW
Quick Jump:
Technical Specifications
Analog Devices ADCMP354YKSZ-REEL7 technical specifications.
General
Package/Case
SC
Contact Plating
Tin, Matte
Height
1mm
Hysteresis
15mV
Input Bias Current
170uA
Lead Free
Contains Lead
Length
2.2mm
Max Input Current
170uA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
83uW
Max Supply Voltage
5.5V
Min Supply Voltage
2.25V
Nominal Supply Current
10uA
Number of Channels
1
Number of Elements
1
Operating Supply Current
10uA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
83uW
Propagation Delay
5us
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
5us
RoHS Compliant
Yes
Supply Current
15uA
Voltage
5V
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADCMP354YKSZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices ADCMP354YKSZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

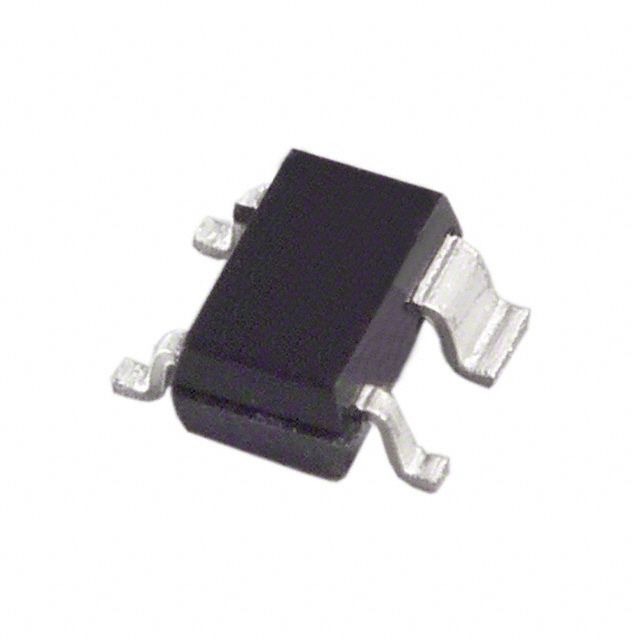

Product Images
