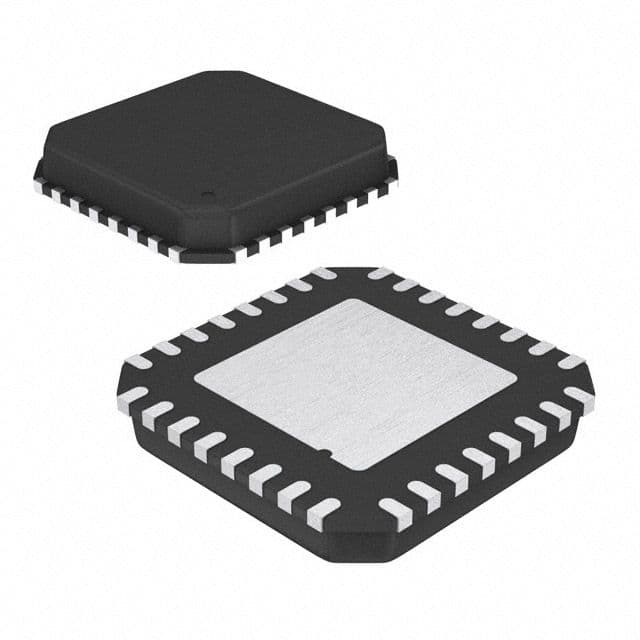

Dual-channel specialty logic IC featuring a 290ps response time and 0.29ns propagation delay. Operates from a dual supply voltage of 5V, with a maximum supply voltage of 5.25V and minimum of 4.75V. Offers a 60dB voltage gain, 69dB common mode rejection ratio, and 69dB power supply rejection ratio. Packaged in a 5mm x 5mm LFCSP EP with tin, matte contact plating, and a height of 0.83mm. Suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADCMP566BCPZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LFCSP EP |
| Common Mode Rejection Ratio | 69dB |
| Contact Plating | Tin, Matte |
| Dual Supply Voltage | 5V |
| Height | 0.83mm |
| Hysteresis | 1mV |
| Input Bias Current | 42uA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Contains Lead |
| Length | 5mm |
| Max Input Current | 42uA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 525mW |
| Max Supply Current | 18mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 550mW |
| Power Supply Rejection Ratio (PSRR) | 69dB |
| Propagation Delay | 0.29ns |
| Quiescent Current | 85mA |
| Radiation Hardening | No |
| Response Time | 290ps |
| RoHS Compliant | Yes |
| Supply Current | 18mA |
| Voltage Gain | 60dB |
| Width | 5mm |
| RoHS | Compliant |
