ANALOG DEVICES

ADCMP572BCPZ-WP

Datasheet

Ultrafast Comparator, 1-Ch, 3.1V-5.4V, 165ns, CML Out, LFCSP EP

Analog Devices

ADCMP572BCPZ-WP

Name: ADCMP572BCPZ-WP Analog Devices
Brand: Analog Devices
SKU: ADCMP572BCPZ-WP

Ultrafast Comparator, 1-Ch, 3.1V-5.4V, 165ns, CML Out, LFCSP EP

Ultrafast single-supply comparator featuring CML output drivers. Operates from a 3.1 V to 5.4 V supply, with a typical supply current of 44 mA. Offers a 0.165 ns propagation delay and 1 mV hysteresis. Packaged in an LFCSP EP with tin, matte contact plating, measuring 3.1 mm x 3.1 mm x 0.75 mm. Key performance includes 65 dB CMRR and 74 dB PSRR.

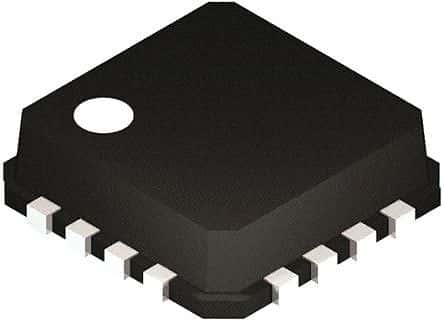

PackageLFCSP EP

Current44mA

Power145mW

Quick Jump:

Technical Specifications

Analog Devices ADCMP572BCPZ-WP technical specifications.

General

Package/Case	LFCSP EP
Common Mode Rejection Ratio	65dB
Contact Plating	Tin, Matte
Height	0.75mm
Hysteresis	1mV
Input Bias Current	25uA
Input Offset Voltage (Vos)	2mV
Lead Free	Contains Lead
Length	3.1mm
Max Input Current	25uA
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Power Dissipation	230mW
Max Supply Current	44mA
Max Supply Voltage	5.4V
Min Supply Voltage	3.1V
Number of Channels	1
Number of Elements	1
Operating Supply Current	44mA
Output Current	20mA
Package Quantity	50
Packaging	Tray
Power Dissipation	145mW
Power Supply Rejection Ratio (PSRR)	74dB
Propagation Delay	0.165ns
Quiescent Current	52mA
Radiation Hardening	No
Reach SVHC Compliant	No
Response Time	165us
RoHS Compliant	Yes
Supply Current	44mA
Technology	BIPOLAR
Voltage Gain	54dB
Width	3.1mm
