Single-phase energy measurement IC featuring an 8052 MCU core, 62KB FLASH memory, and 2.256KB RAM. This integrated circuit includes an RTC and LCD driver, supporting I2C, SPI, and UART interfaces. Operating from a 3.13V to 3.46V supply, it offers a 770kR input impedance and a 32.768kHz maximum frequency. Packaged in an LQFP with tin, matte plating, this surface mount component operates between -40°C and 85°C.
Frequency32.768kHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADE5169ASTZF62 technical specifications.
General
Package/Case
LQFP
Contact Plating
Tin, Matte
Core Architecture
8052
Data Bus Width
8b
Height
1.4mm
Input Impedance
770kR
Interface
I2C, SPI, UART
Lead Free
Contains Lead
Length
10mm
Max Frequency
32.768kHz
Max Operating Temperature
85°C
Max Supply Voltage
3.46V
Memory Size
62KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3.13V
Mount
Surface Mount
Number of I/Os
20
Operating Supply Current
4.4mA
Operating Supply Voltage
3.3V
Packaging
Tray
RAM Size
2.256KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.012088oz
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADE5169ASTZF62 Datasheet
Download the complete datasheet for Analog Devices ADE5169ASTZF62 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

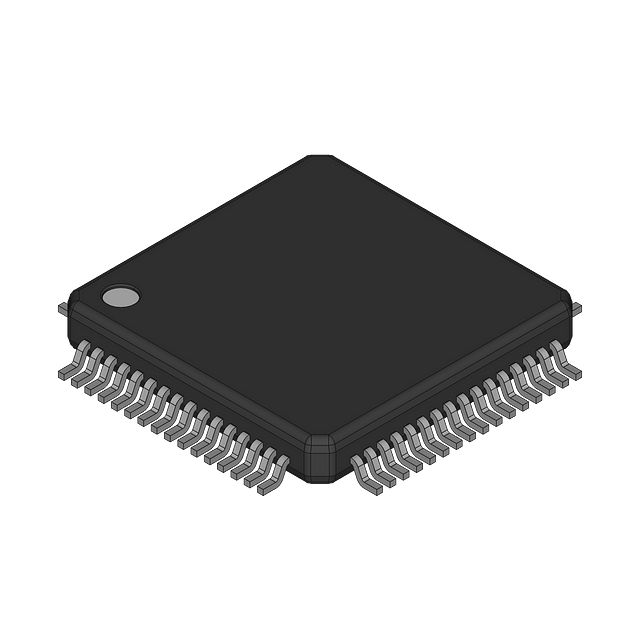

Product Images
