The ADE5169ASTZF62-RL is a surface mount LQFP-64 packaged 8052 microcontroller with an 8-bit data bus width and UART interface. It operates over a temperature range of -40°C to 85°C and consumes 4.4mA of operating supply current. The device is RoHS compliant and available in tape and reel packaging with 1500 units per package. The ADE5169ASTZF62-RL is not radiation hardened and contains lead, making it non-lead-free.
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADE5169ASTZF62-RL technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | 8052 |
| Data Bus Width | 8b |
| Input Impedance | 770kR |
| Interface | UART |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Current | 4.4mA |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADE5169ASTZF62-RL Datasheet
Download the complete datasheet for Analog Devices ADE5169ASTZF62-RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

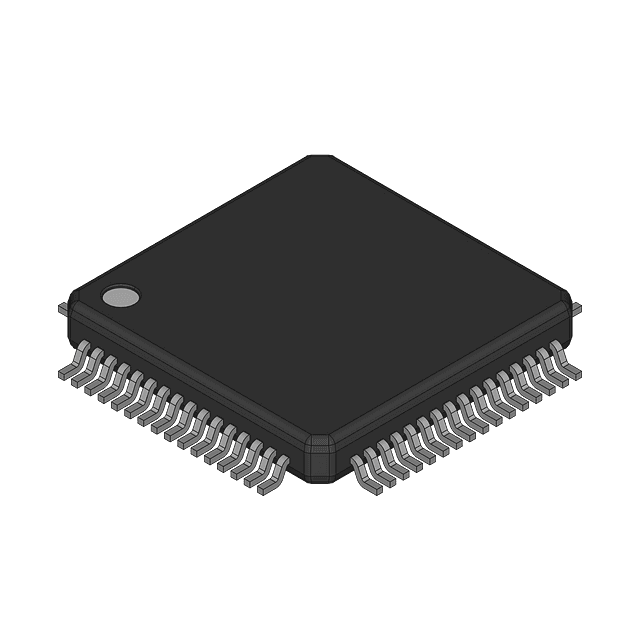

Product Images
