Frequency32.768kHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADE7116ASTZF16 technical specifications.
General
Package/Case
LQFP
Contact Plating
Tin, Matte
Core Architecture
8052
Data Bus Width
8b
Input Impedance
770kR
Interface
I2C, SPI, UART
Lead Free
Contains Lead
Max Frequency
32.768kHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of I/Os
10
Number of Timers/Counters
4
Operating Supply Current
4mA
Operating Supply Voltage
3.7V
Package Quantity
160
Packaging
Tray
RAM Size
512B
RoHS Compliant
Yes
Type
Integrated Circuit (IC)
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADE7116ASTZF16 Datasheet
Download the complete datasheet for Analog Devices ADE7116ASTZF16 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

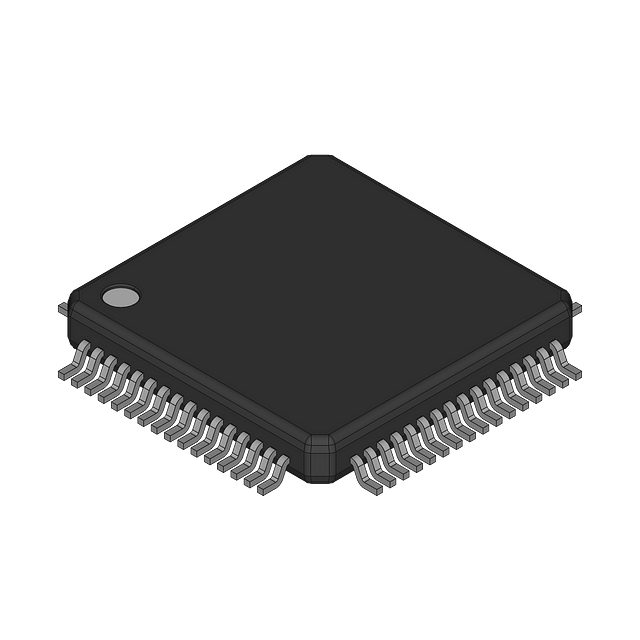

Product Images
