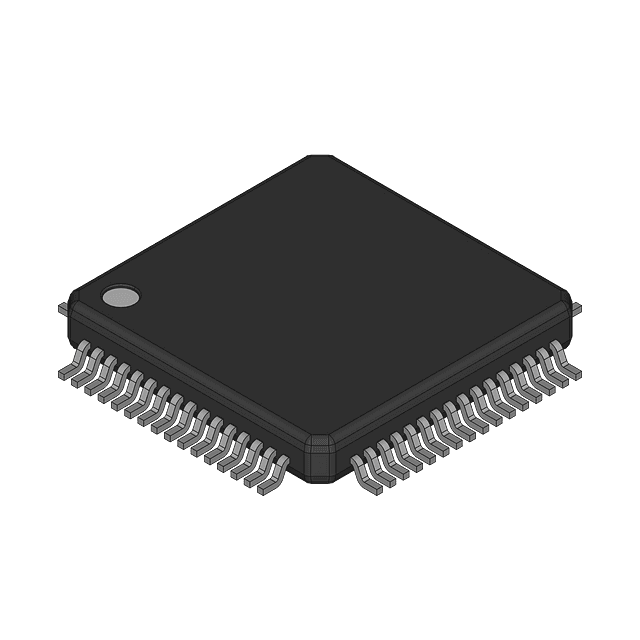

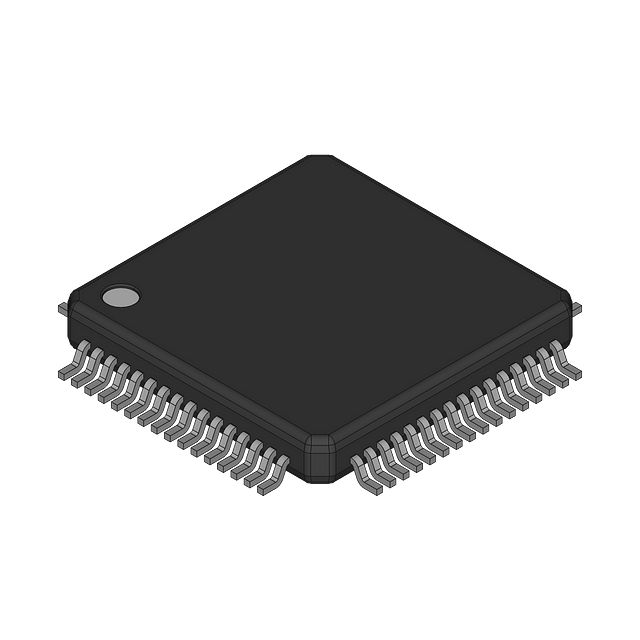

Single-phase energy measurement IC featuring an integrated 8052 MCU, real-time clock, and LCD driver. This surface mount component, housed in an LQFP package with tin matte plating, offers an 8-bit data bus and operates with a 2.4V to 3.7V supply. Key specifications include a 25.6kS/s conversion rate, 16KB FLASH memory, 512B RAM, and SPI/UART interfaces. It supports a maximum operating temperature of 85°C and a minimum of -40°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADE7566ASTZF16 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Conversion Rate | 25.6KS/s |
| Core Architecture | 8052 |
| Data Bus Width | 8b |
| Height | 1.45mm |
| Input Impedance | 770kR |
| Interface | SPI, UART |
| Lead Free | Contains Lead |
| Length | 10.2mm |
| Max Frequency | 32.768kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.7V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Nominal Supply Current | 5.3mA |
| Number of Timers/Counters | 1 |
| Operating Supply Current | 4mA |
| Package Quantity | 160 |
| Packaging | Tray |
| RAM Size | 512B |
| Resolution | 1b |
| RoHS Compliant | Yes |
| Width | 10.2mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADE7566ASTZF16 to view detailed technical specifications.
