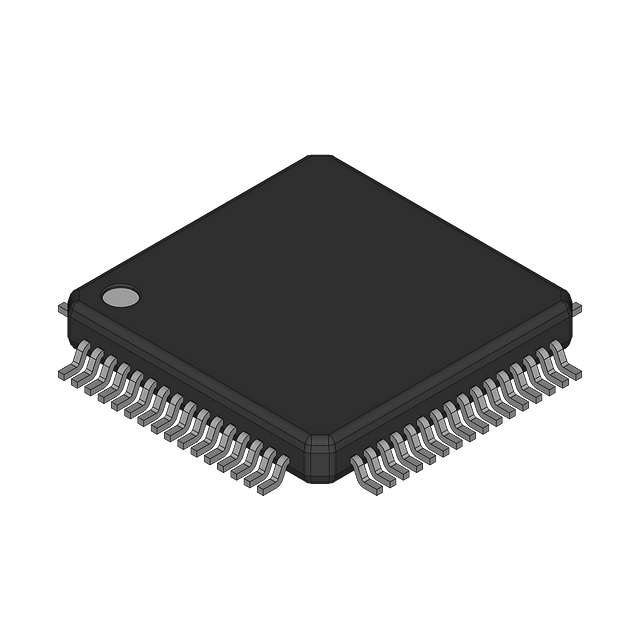

Single-phase energy measurement IC featuring an integrated 8052 MCU, real-time clock, and LCD driver. This surface mount component, housed in an LQFP package with tin-matte plating, offers 512B RAM and 16KB of FLASH memory. Operates from 2.4V to 3.7V with a typical supply current of 4mA, supporting a maximum operating temperature of 85°C. Includes a UART interface and two timers/counters for versatile application integration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices ADE7569ASTZF16 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices ADE7569ASTZF16 technical specifications.
| Package/Case | LQFP |
| Contact Plating | Tin, Matte |
| Core Architecture | 8052 |
| Data Bus Width | 8b |
| Height | 1.4mm |
| Input Impedance | 770kR |
| Interface | UART |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Frequency | 1Hz |
| Max Operating Temperature | 85°C |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.7V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Number of Timers/Counters | 2 |
| Operating Supply Current | 4mA |
| Package Quantity | 160 |
| Packaging | Tray |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 10mm |
| RoHS | Compliant |
Download the complete datasheet for Analog Devices ADE7569ASTZF16 to view detailed technical specifications.
